Composite Push to Connect Fittings | Push in Fittings

For Metric / Inch Tubing, R (PT, BSPT), G (BSPP), NPT, UNF, UNC, Metric Connection Thread

composite push to connect fittings

As a kind of pneumatic fittings, composite push to connect fittings (push in fittings) from Pneuflex provide easy connection and disconnection tube without causing damage to the tube. Composite push to connect fittings become essential parts in pneumatic and fluid system. Composite push to connect fittings are available in a variety of types, moulds, sizes and thread types to satisfy various metric and inch tube demands. Composite push to connect fittings from Pneuflex could accommodate both metric size tubing and inch size tubing that are made from polyurethane, polyethylene and nylon. Composite push to connect fittings are ideal for general pneumatic industrial applications.

Composite Push to Connect Fittings Features

  • Optional shapes of Release Sleeve: Oval and Round Release Sleeve
  • Multiple colors of Release Sleeve: Blue, Black, Orange, Red, Orange, Gray
  • Accommodate kinds of connection thread type: R (PT, BSPT), G (BSPP), NPT, UNF, UNC, Metric
  • Accommodate metric size tubing O.D: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm
  • Accommodate inch size tubing O.D: 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8"
  • Proof pressure: up to 3.0Mpa (435psi)

All pneumatic push to connect fittings from Pneuflex are RoHS compliant

Product Specifications
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass / PBT Plastic
Thread Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC
Catalog (PDF) of Composite Push to Connect Fittings
Installation (PDF) of Composite Push to Connect Fittings
RoHS Compliance of Composite Push to Connect Fittings

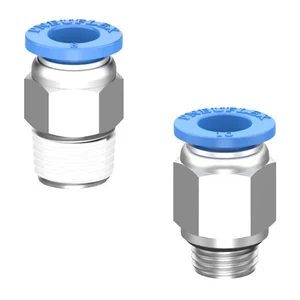

  • composite push to connect fitting male connector

    1. PC Male Connector

    2. Most generally used model. Used to tube a female thread in thes same direction. Accommodate Metric and Inch tube; Connection Thread: R, PT, BSPT, BSPP, G, NPT, Metric.
    3. Series: Composite Push to Connect Fittings
    4. (255 products)
    5. More info...

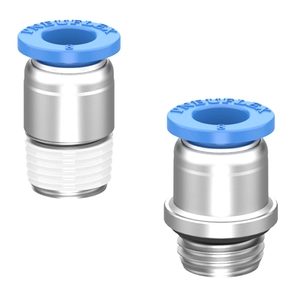

  • Round Male Connector Push to Connect Fitting

    1. POC Round Male Connector

    2. Round male connector is widely used in the situation where the assembly space is limited. Accommodate Metric and Inch tube; Connection Thread: R, PT, BSPT, BSPP, G, NPT, Metric.
    3. Series: Composite Push to Connect Fittings
    4. (0 products)
    5. More info...
  • male elbow push to connect fitting

    1. PL Male Elbow

    2. Most generally used push to connect fitting. Used to tube a female thread at a 90° angle. Accommodate Metric and Inch tube; Connection Thread: R, PT, BSPT, BSPP, G, NPT and Metric.
    3. Series: Composite Push to Connect Fittings
    4. (24 products)
    5. More info...

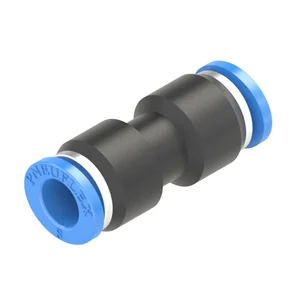

  • pu union straight push to connect fitting

    1. PU Union Straight

    2. Most generally used model. Used to connect two tubings of same diameter in the same direction. Accommodate metric tube O.D ranging from 3mm to 16mm, inch tube O.D ranging from 1/8" to 5/8".
    3. Series: Composite Push to Connect Fittings
    4. (19 products)
    5. More info...

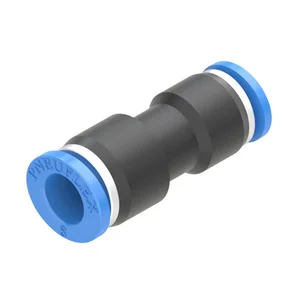

  • union straight reducer push to connect fitting

    1. PG Union Straight Reducer

    2. Generally used model. Used to connect two tubes of different sizes in a straight line. Accommodate metric tube and inch tube.
    3. Series: Composite Push to Connect Fittings
    4. (23 products)
    5. More info...

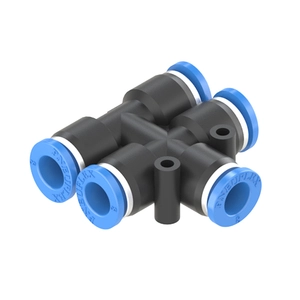

  • PED Double Union Tee

    1. PED Double Union Tee

    3. Series: Composite Push to Connect Fittings
    4. (0 products)
    5. More info...

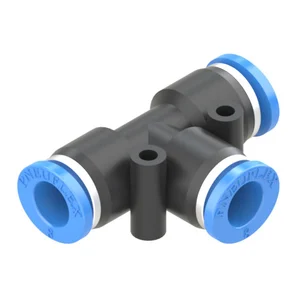

  • union Tee push to connect fitting

    1. PE Union Tee

    2. Union Tee is used to connect three tubes of equal diameter at both 90° angles. Accommodates metric tubing O.D ranging from 4mm to 16mm, inch tubing O.D ranging from 1/8" to 5/8".
    3. Series: Composite Push to Connect Fittings
    4. (20 products)
    5. More info...

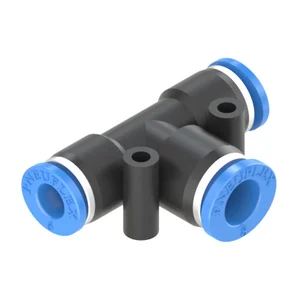

  • Union Tee Reducer Push to Connect Fittings, T Type Fittings

    1. PGE Union Tee Reducer

    2. Union tee reducer push to connect fitting is used to connect three tubings with size down in both 90 degree angles. Tubing size in middle is bigger than two inline tubings.
    3. Series: Composite Push to Connect Fittings
    4. (12 products)
    5. More info...

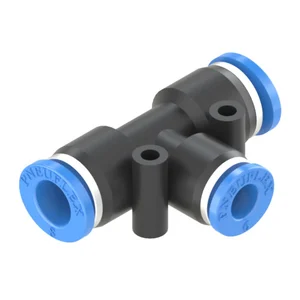

  • Union Tee Reducer Push to Connect Fitting

    1. PEG Union Tee Reducer

    2. Union tee reducer is used to connect three tubes with size down in both 90° directions. Accommodate metric tubing O.D ranging from 4mm to 12mm, inch tubing O.D ranging from 1/8" to 1/2".
    3. Series: Composite Push to Connect Fittings
    4. (19 products)
    5. More info...

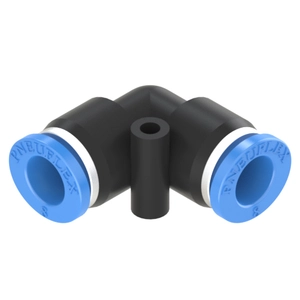

  • Union Elbow Push to Connect Fitting

    1. PV Union Elbow

    2. Union elbow push to connect fitting is used to connect two tubes with equal tubing diameter on both ends at a right angle, can be used to change direction of tubing easily.
    3. Series: Composite Push to Connect Fittings
    4. (20 products)
    5. More info...

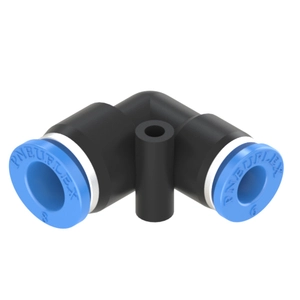

  • Union Elbow Reducer Push to Connect Fitting

    1. PVG Union Elbow Reducer

    2. Union elbow reducer push to connect fitting is used to connect two tubes with different tubing diameter on both ends at a 90° angle, can be used to change direction of tubing easily.
    3. Series: Composite Push to Connect Fittings
    4. (15 products)
    5. More info...

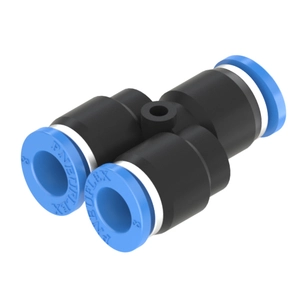

  • Union Y Push to Connect Fitting

    1. PY Union Y

    2. Union Y push to connect fitting connects three tubes of the same diameter for dividing air distribution. Best choice when there is a need to split air flow into two tubes without changing direction.
    3. Series: Composite Push to Connect Fittings
    4. (20 products)
    5. More info...

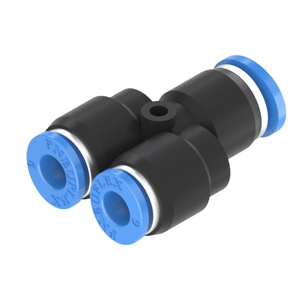

  • Union Y Reducer Push to Connect Fitting

    1. PW Union Y Reducer

    2. Union Y reducer push to connect fitting connects one tube to two tubes on another side for branching air distribution in same direction. The tubing size in the middle is smaller than the other two.
    3. Series: Composite Push to Connect Fittings
    4. (11 products)
    5. More info...

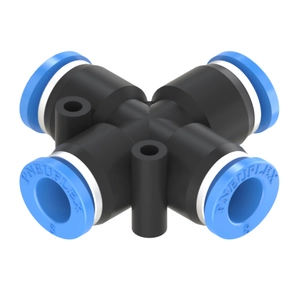

  • Union Cross Push to Connect Fitting

    1. PZA Union Cross

    2. Union cross push to connect fitting is used to connect together four tubes in all 90° directions. All tubing connections are of the same diameter.
    3. Series: Composite Push to Connect Fittings
    4. (16 products)
    5. More info...

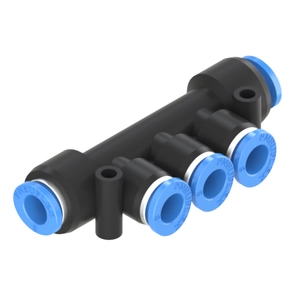

  • Union Branch Push to Connect Fitting

    1. PK Union Branch

    2. Union branch push to connect fitting is used for in-line distribution of air to three tubing connections at a 90° angle to the supply line with same tube diameter. It's made of PBT and gripping claw.
    3. Series: Composite Push to Connect Fittings
    4. (12 products)
    5. More info...

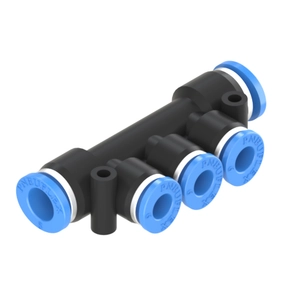

  • Union Branch Reducer Push to Connect Fitting

    1. PKG Union Branch Reducer

    2. Union branch reducer push to connect fitting is used for in-line distribution of air to three smaller diameter tubing connections at a 90℃ angle to the supply line. It's made of PBT and gripping claw.
    3. Series: Composite Push to Connect Fittings
    4. (8 products)
    5. More info...

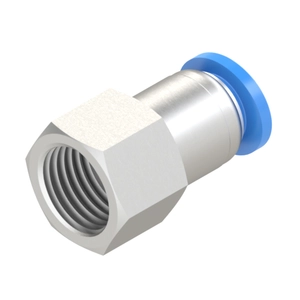

  • PCF Female Connecto Push to Connect Fitting

    1. PCF Female Connector

    2. Most generally used model. Used to tube a male thread in thes same direction. Accommodate Metric and Inch tube; Connection Thread: R, PT, BSPT, BSPP, G, NPT, Metric.
    3. Series: Composite Push to Connect Fittings
    4. (263 products)
    5. More info...

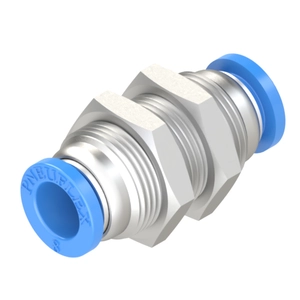

  • Bulkhead Union Push to Connect Fitting

    1. PM Bulkhead Union

    2. Bulkhead union push to connect fitting connects two tubes on both ends through a panel in straight line and can change tubing connector direction, provides optimum sealing between fitting and panel.
    3. Series: Composite Push to Connect Fittings
    4. (16 products)
    5. More info...

Sealing Test of Push to Connect Fittings

Sealing is a key point to measure the quality of push to connect fittings. Pneuflex designed a full line of automatic sealing testing machines. By these machines, Pneuflex realized the testing of every fitting at any pressure keeping over 10s.

Pneuflex's Quality Control

Pneuflex has an independent Quality Control Department to carry out quality control process strictly from making parts of pneumatic fittings to packing. Quality control is Pneuflex's priority and base of supporting distributors in more than 30 countries.
