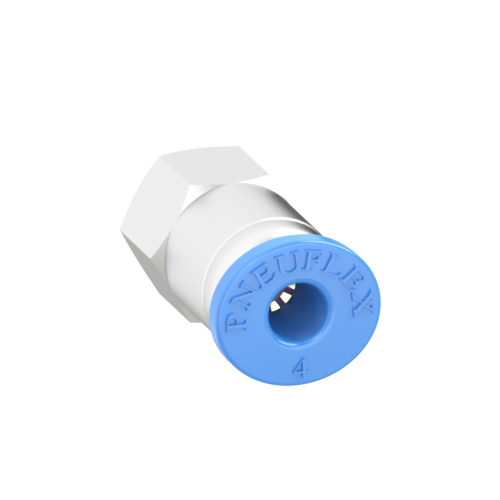

PCF 04-M5 | 4mm Tube - M5 × 0.8 Thread Female Connector | Push to Connect Fitting

PCF 04-M5 female connector push to connect fitting is used to connect 4 mm O.D tubing to M5 x 0.8 metric parallel male stud thread in an inline configuration. Outside hexagonal wrench tightening. Oval or round release ring helps to connect tube easily by manual, no special tools required. Have abrasion resistance, light weight, and resistance to crushing and cracking, compressive and corrosion resistant, good sealing performance and long service life.

Product Specifications

Applicable Tubing O.D.:	4mm
Connection Thread:	M5 x 0.8

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	-20∼80°C | -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC...
