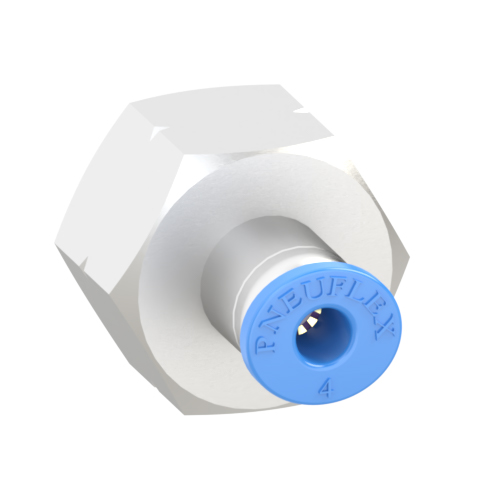

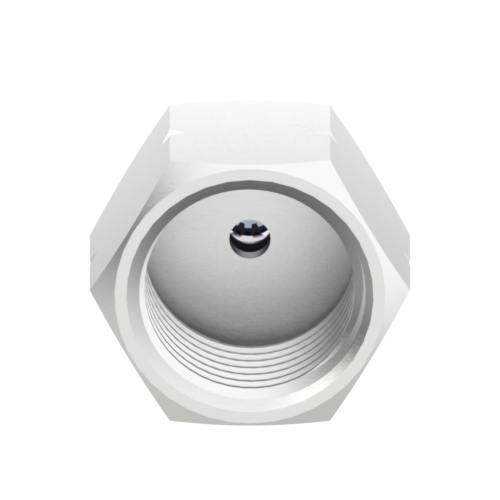

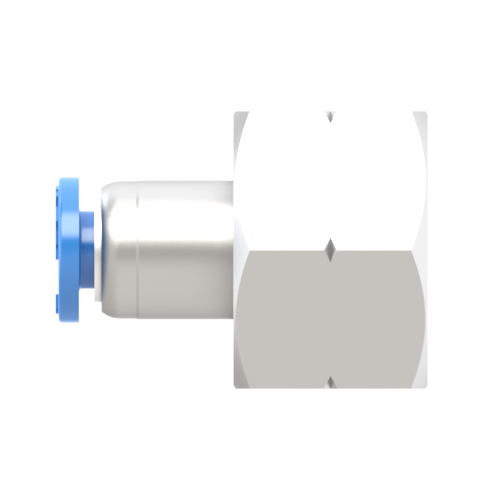

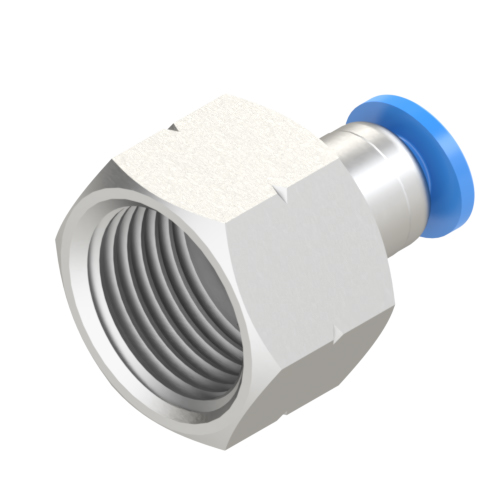

PCF 04-N03 | 4mm Tube - 3/8 NPT Thread Female Connector | Push to Connect Fitting

PCF 04-N03 female connector push to connect fitting is used to connect 4mm O.D tubing to 3/8 NPT male stud thread in an inline configuration. 4mm O.D tubing to 3/8 NPT female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 4mm tubing to 3/8 NPT female connector pneumatic fittings are ready to use, allowing easy, tool-free assembly and providing optimum flow.

4mm - 3/8 NPT female connector push to connect fitting 4mm Tube, 3/8 NPT Female Connector 4mm Tube, 3/8 NPT Push to Connect Fitting 4mm Tube, 3/8 NPT Push to Connect Fitting Female Connector
Product Specifications
Applicable Tubing O.D.: 4mm
Connection Thread: 3/8 NPT
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC...
Category: Composite Push to Connect Fittings / PCF Female Connector
