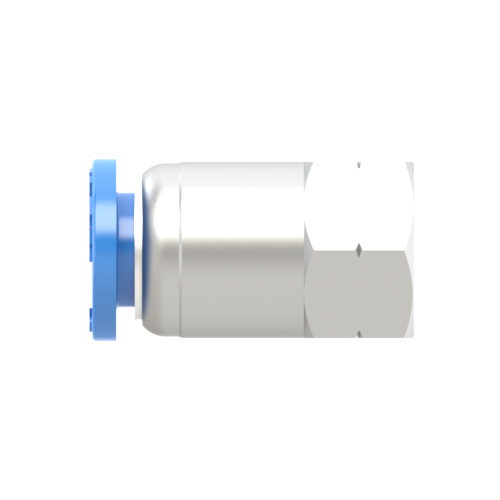

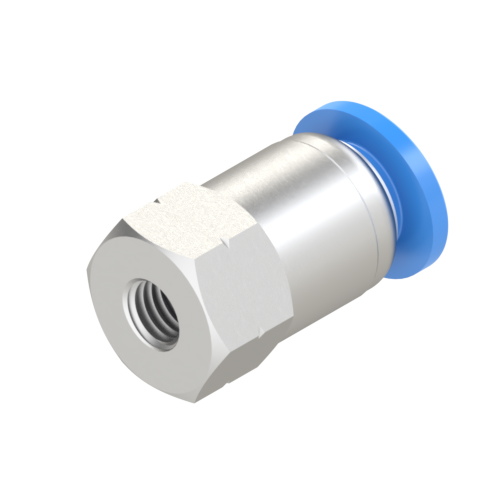

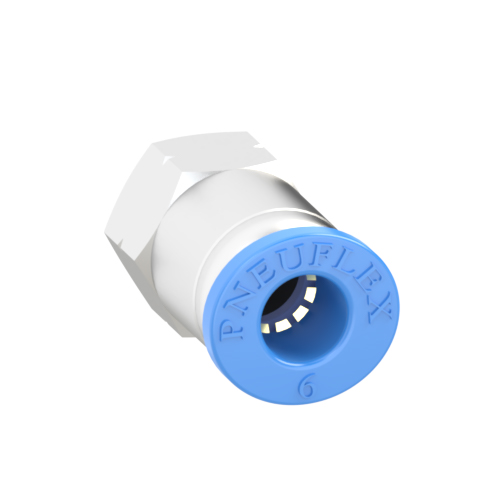

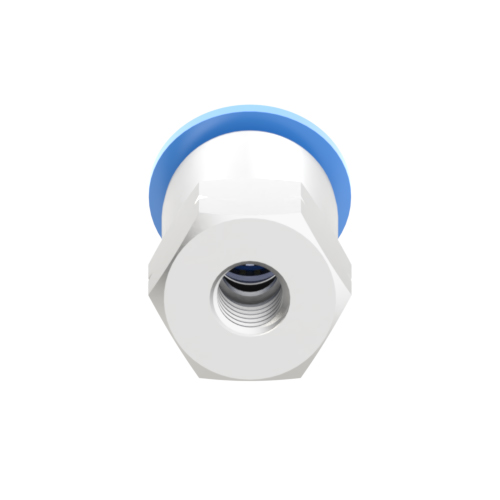

PCF 06-U10 | 6mm Tube - 10-32 UNF Thread Female Connector | Push to Connect Fitting

PCF 06-U10 female connector push to connect fitting is used to connect 6 mm O.D tubing to 10-32 UNF metric parallel male stud thread in an inline configuration. Outside hexagonal wrench tightening. Oval or round release ring helps to connect tube easily by manual, no special tools required. Have abrasion resistance, light weight, and resistance to crushing and cracking, compressive and corrosion resistant, good sealing performance and long service life.

Product Specifications

Applicable Tubing O.D.:	6mm
Connection Thread:	10-32UNF

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	-20∼80°C | -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC...
