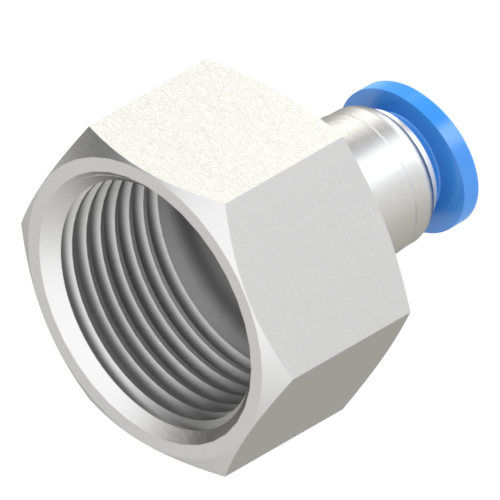

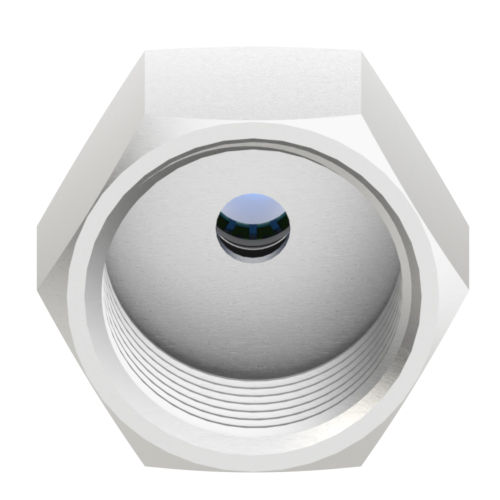

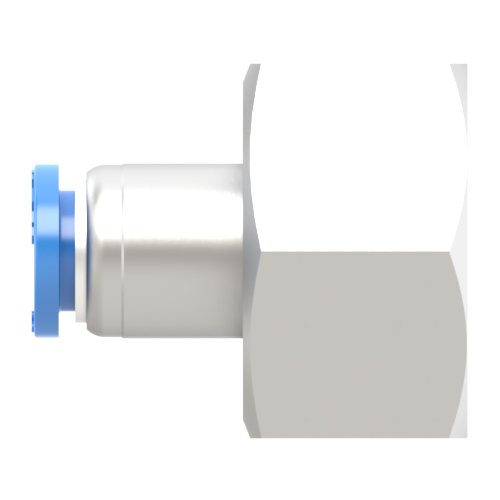

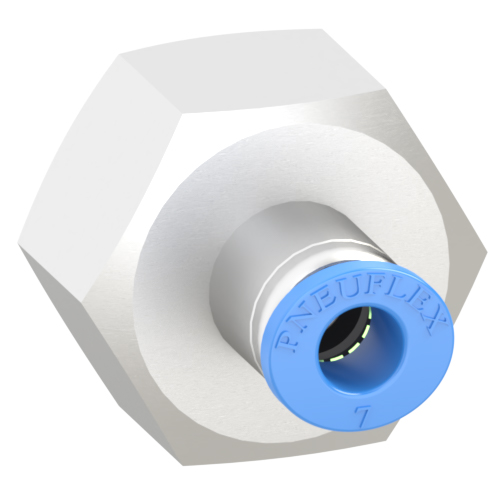

PCF 07-G06 | 7mm Tube - BSP, BSPP, G 3/4 Thread Female Connector | Push to Connect Fitting
PCF 07-G06 female connector push to connect fitting is used to connect 7mm O.D tubing to BSP, BSPP, G 3/4 male stud thread in an inline configuration. 7mm O.D tubing to BSP, BSPP, G 3/4 female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 7mm tubing to BSP, BSPP, G 3/4 female connector pneumatic fittings connect tubing and components of hydraulic and pneumatic systems without the needs for tools or soldering, promoting ease of installation and troubleshooting.
Product Specifications
| Applicable Tubing O.D.: | 7mm |
| Connection Thread: | G3/4 |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
