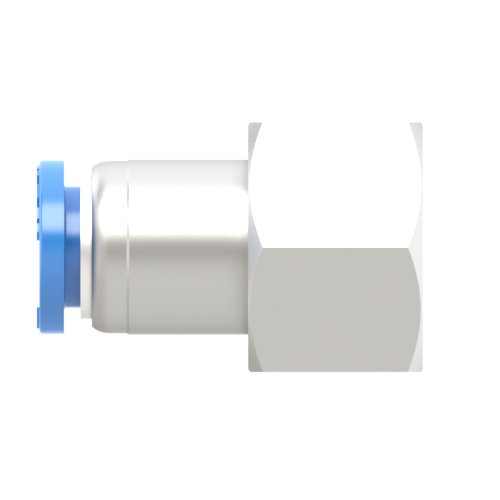

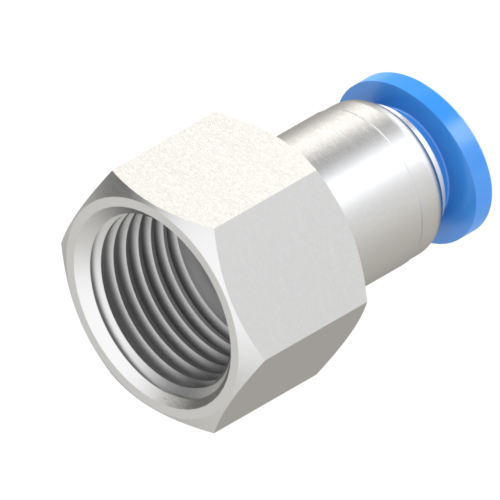

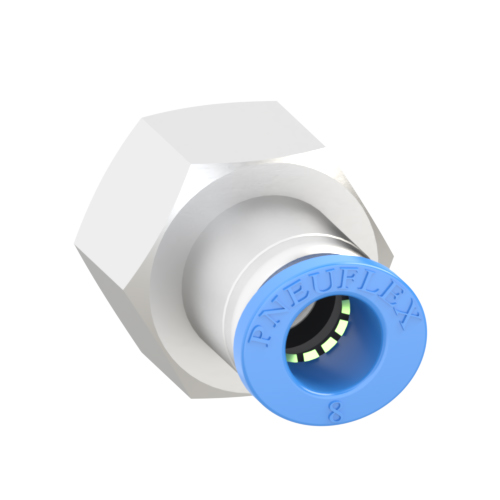

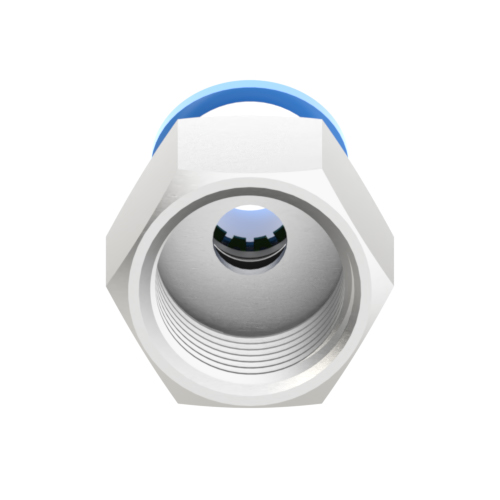

PCF 08-G03 | 8mm Tube - BSP, BSPP, G 3/8 Thread Female Connector | Push to Connect Fitting

PCF 08-G03 female connector push to connect fitting is used to connect 8mm O.D tubing to BSP, BSPP, G 3/8 male stud thread in an inline configuration. 8mm O.D tubing to BSP, BSPP, G 3/8 female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 8mm tubing to BSP, BSPP, G 3/8 female connector pneumatic fittings connect tubing and components of hydraulic and pneumatic systems without the needs for tools or soldering, promoting ease of installation and troubleshooting.

Product Specifications

Applicable Tubing O.D.:	8mm
Connection Thread:	G3/8

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	-20∼80°C | -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC...
