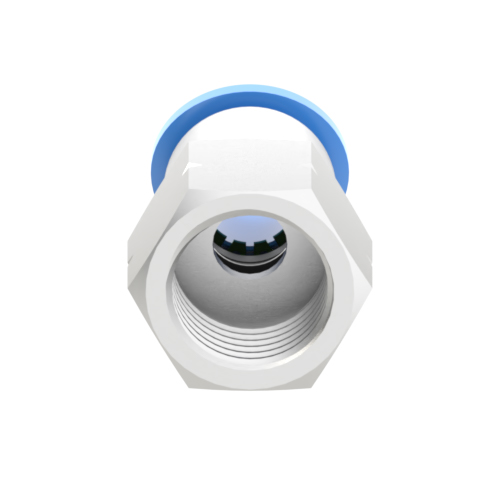

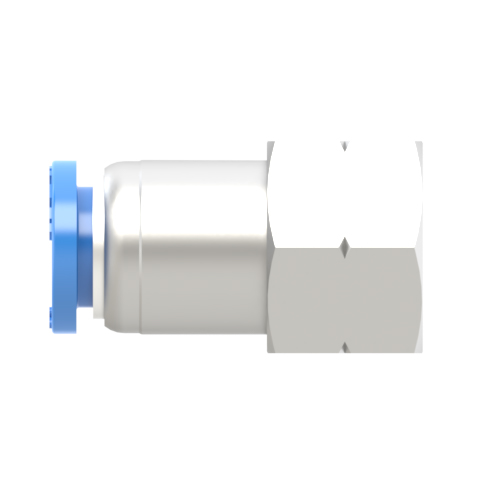

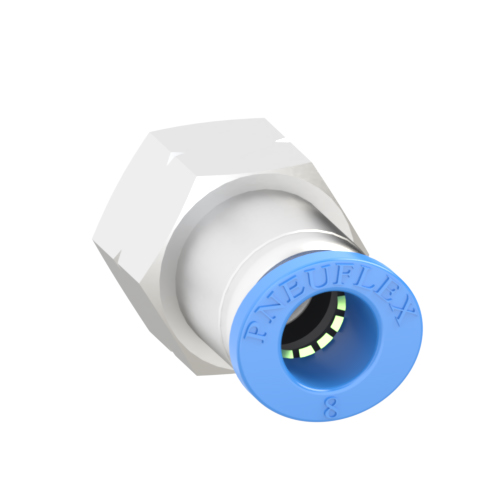

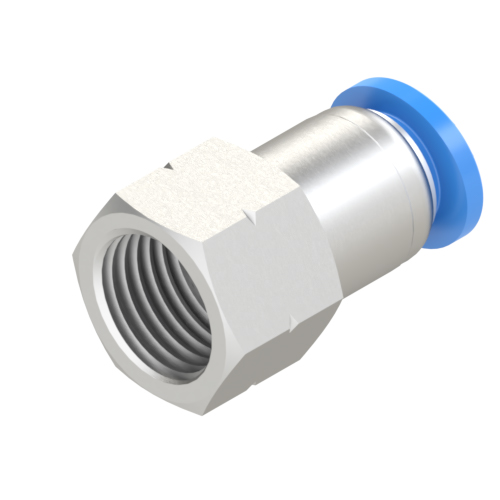

PCF 08-N02 | 8mm Tube - 1/4 NPT Thread Female Connector | Push to Connect Fitting

PCF 08-N02 female connector push to connect fitting is used to connect 8mm O.D tubing to 1/4 NPT male stud thread in an inline configuration. 8mm O.D tubing to 1/4 NPT female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 8mm tubing to 1/4 NPT female connector pneumatic fittings are ready to use, allowing easy, tool-free assembly and providing optimum flow.

Product Specifications

Applicable Tubing O.D.:	8mm
Connection Thread:	1/4NPT

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	-20∼80°C | -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC...
