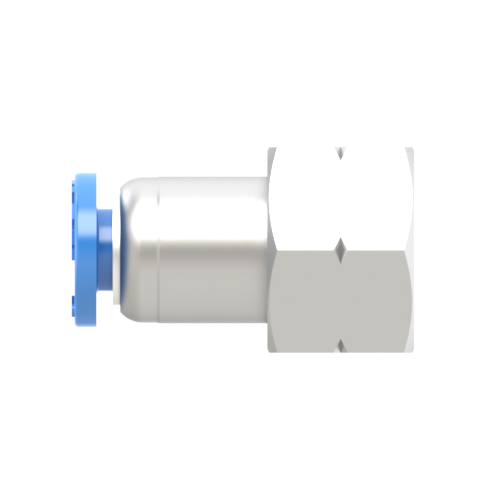

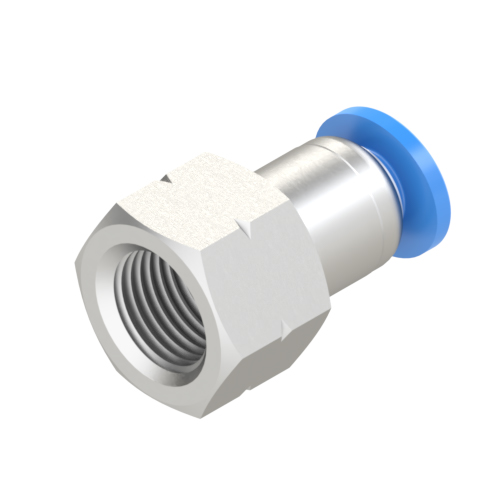

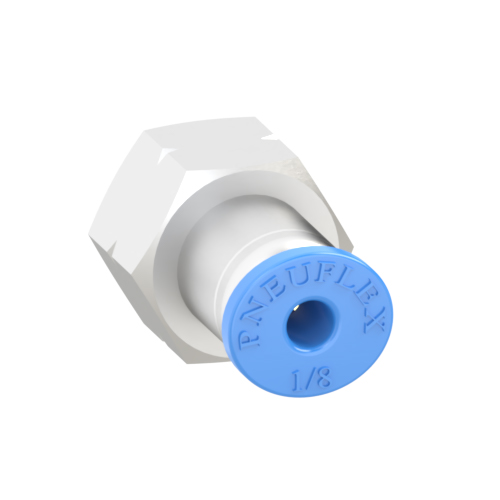

PCF 1/8-N01 female connector push to connect fitting is used to connect 1/8" O.D tubing to 1/8 NPT male stud thread in an inline configuration. 1/8" O.D tubing to 1/8 NPT female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 1/8" tubing to 1/8 NPT female connector pneumatic fittings enable quick tubing connection and disconnection.

1/8 inch tube - 1/8 NPT female connector push to connect fitting 1/8 Inch Tube, 1/8 NPT Female Connector 1/8 Inch Tube, 1/8 NPT Push to Connect Fitting 1/8 Inch Tube, 1/8 NPT Push to Connect Fitting Female Connector
Product Specifications
Applicable Tubing O.D.: 1/8"
Connection Thread: 1/8NPT
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC...
