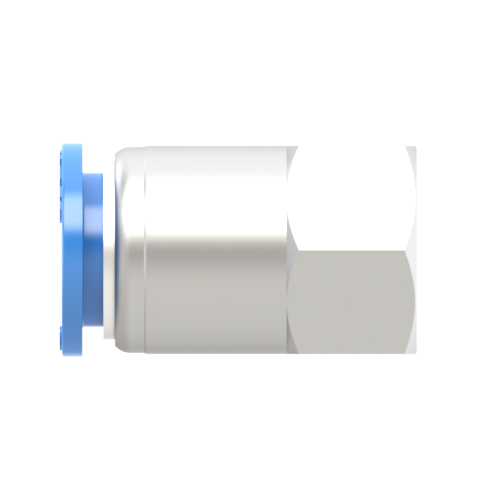

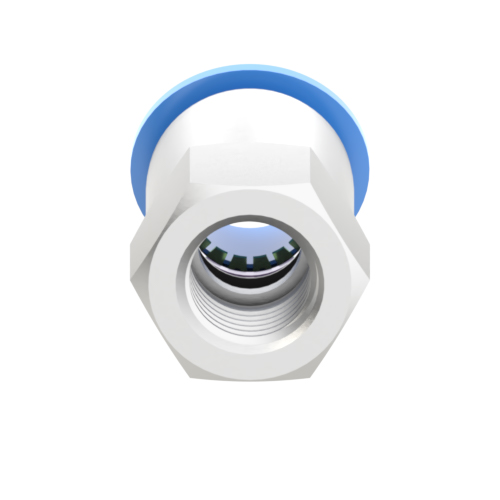

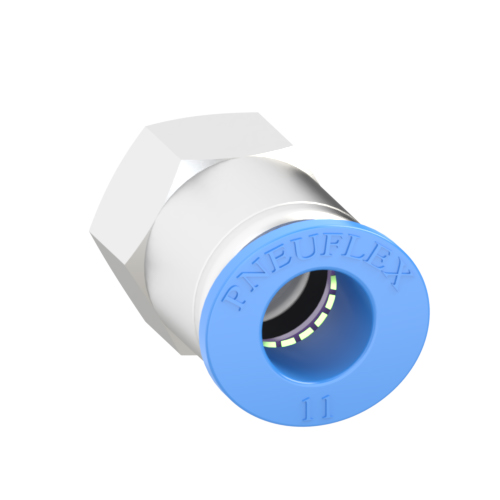

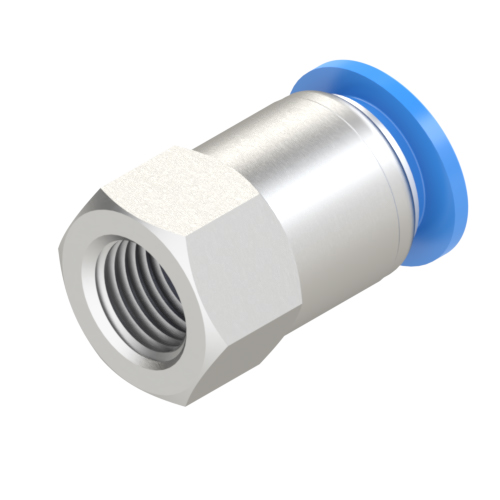

PCF 11-G02 | 11mm Tube - BSP, BSPP, G 1/4 Thread Female Connector | Push to Connect Fitting

PCF 11-G02 female connector push to connect fitting is used to connect 11mm O.D tubing to BSP, BSPP, G 1/4 male stud thread in an inline configuration. 11mm O.D tubing to BSP, BSPP, G 1/4 female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 11mm tubing to BSP, BSPP, G 1/4 female connector pneumatic fittings are mainly used for quick connector piping, which can achieve line connected or disconnected without other tools easily.

Product Specifications

Applicable Tubing O.D.:	11mm
Connection Thread:	G1/4

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	-20∼80°C | -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC...
