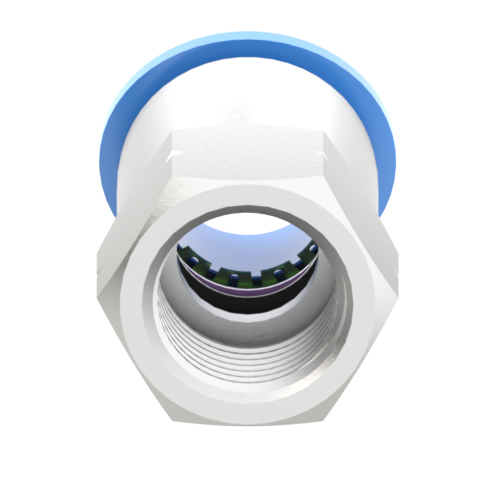

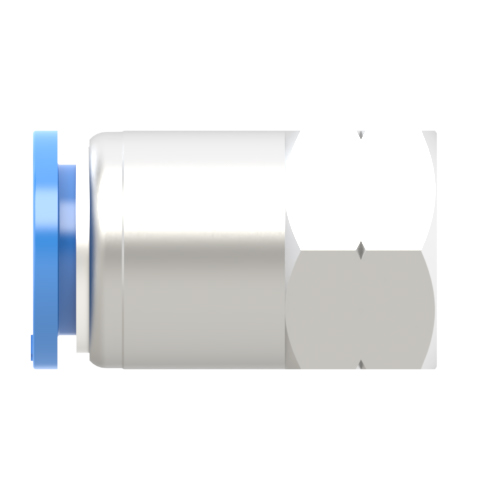

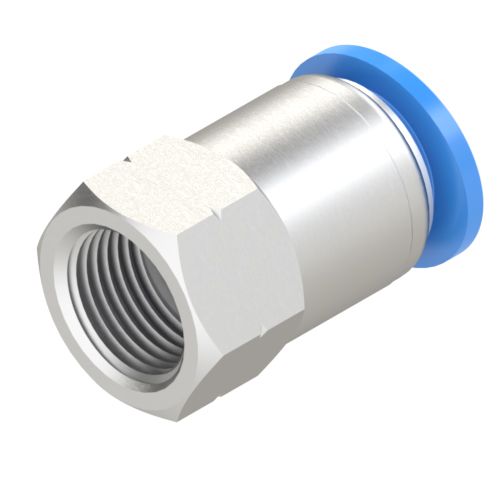

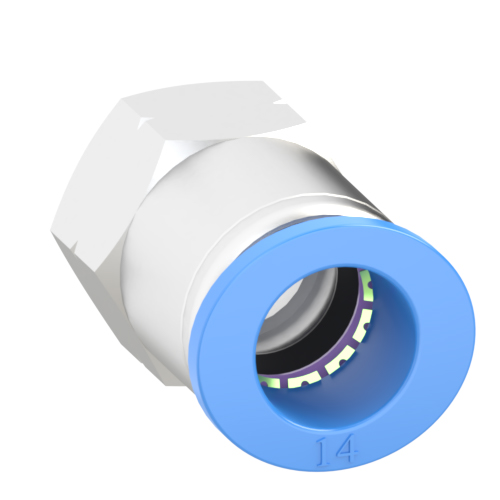

PCF 14-N03 | 14mm Tube - 3/8 NPT Thread Female Connector | Push to Connect Fitting

PCF 14-N03 female connector push to connect fitting is used to connect 14mm O.D tubing to 3/8 NPT male stud thread in an inline configuration. 14mm O.D tubing to 3/8 NPT female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 14mm tubing to 3/8 NPT female connector pneumatic fittings enable tubing in fluid to be connected or disconnected quickly and securely with a simple lock and release mechanism.

Product Specifications

Applicable Tubing O.D.:	14mm
Connection Thread:	3/8NPT

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	-20∼80°C | -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC...
