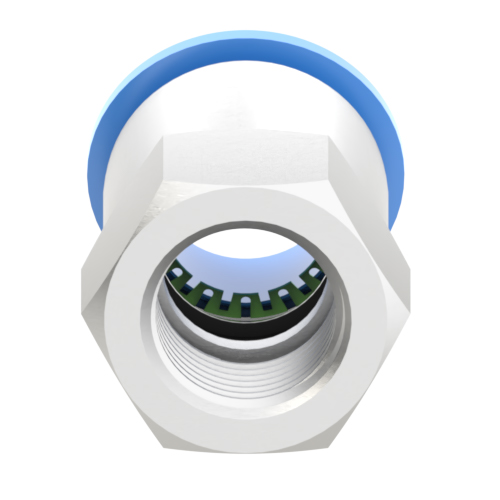

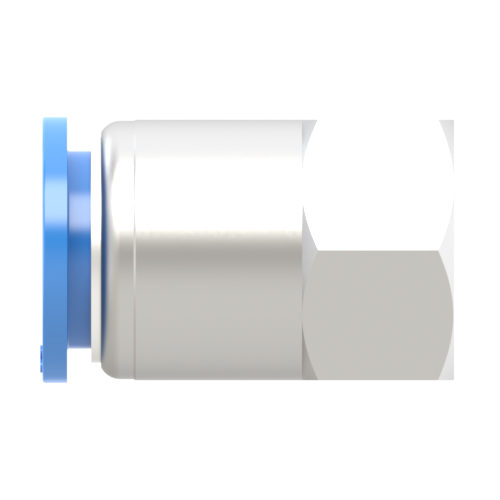

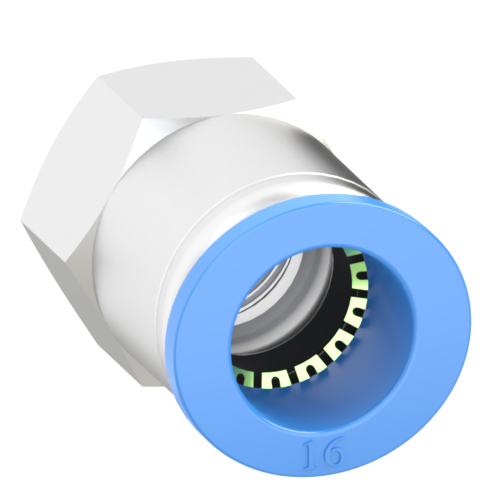

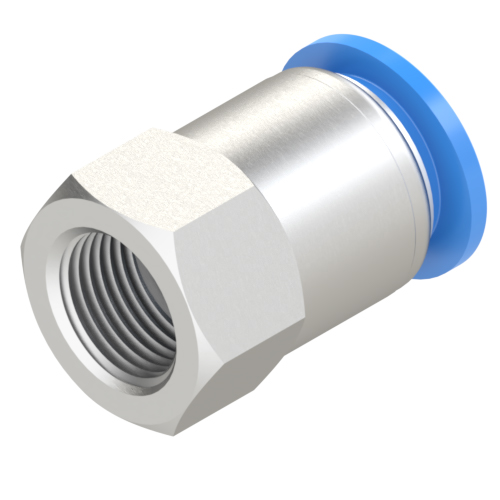

PCF 16-G03 | 16mm Tube - BSP, BSPP, G 3/8 Thread Female Connector | Push to Connect Fitting

PCF 16-G03 female connector push to connect fitting is used to connect 16mm O.D tubing to BSP, BSPP, G 3/8 male stud thread in an inline configuration. 16mm O.D tubing to BSP, BSPP, G 3/8 female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 16mm tubing to BSP, BSPP, G 3/8 female connector pneumatic fittings are mainly used for quick connector piping, which can achieve line connected or disconnected without other tools easily.

16mm - G 3/8 female connector push to connect fitting 16mm Tube, G 3/8 Female Connector 16mm Tube, G 3/8 Push to Connect Fitting 16mm Tube, G 3/8 Push to Connect Fitting Female Connector
Product Specifications
Applicable Tubing O.D.: 16mm
Connection Thread: G3/8
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC...
Category: Composite Push to Connect Fittings / PCF Female Connector
