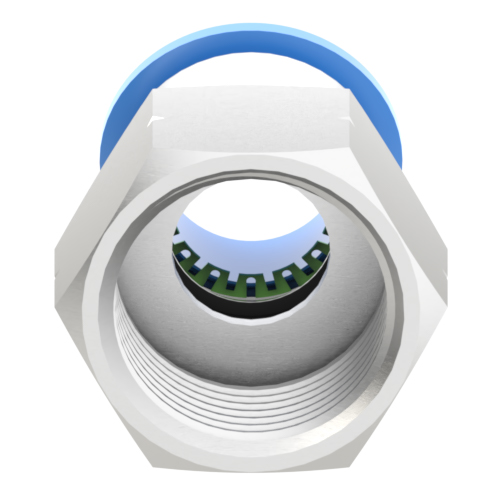

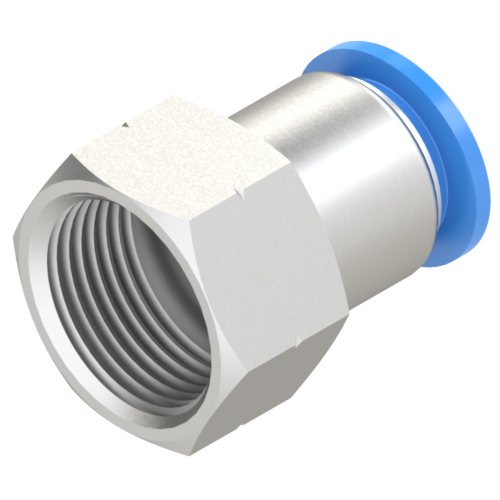

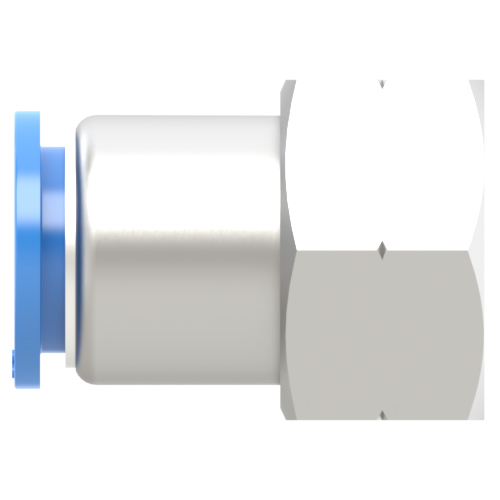

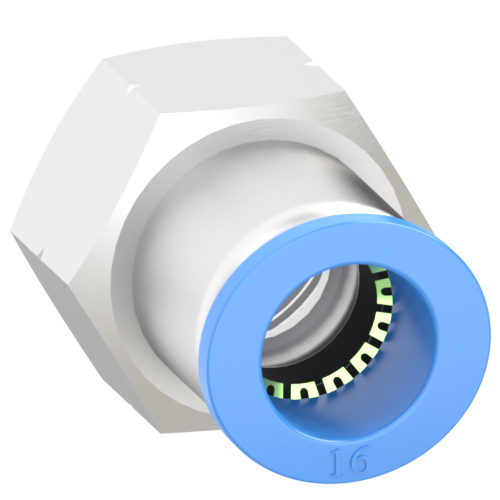

PCF 16-N06 | 16mm Tube - 3/4 NPT Thread Female Connector | Push to Connect Fitting
PCF 16-N06 female connector push to connect fitting is used to connect 16mm O.D tubing to 3/4 NPT male stud thread in an inline configuration. 16mm O.D tubing to 3/4 NPT female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 16mm tubing to 3/4 NPT female connector pneumatic fittings enable tubing in fluid to be connected or disconnected quickly and securely with a simple lock and release mechanism.
Product Specifications
| Applicable Tubing O.D.: | 16mm |
| Connection Thread: | 3/4 NPT |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
