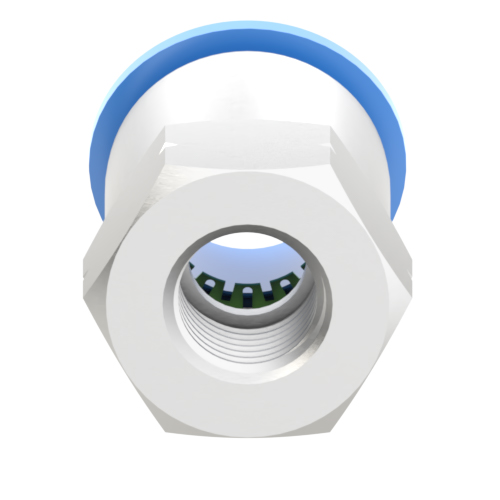

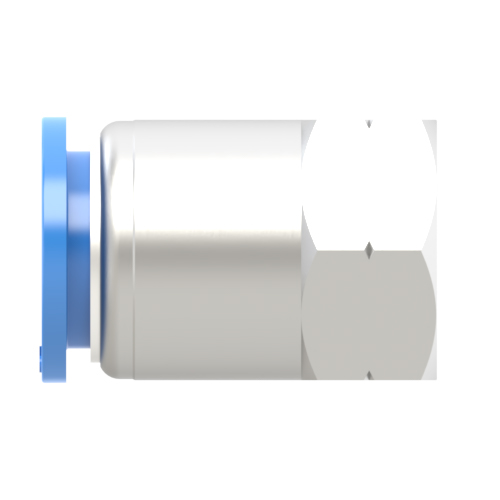

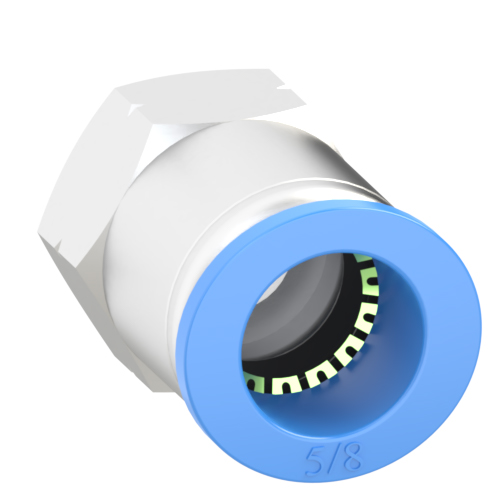

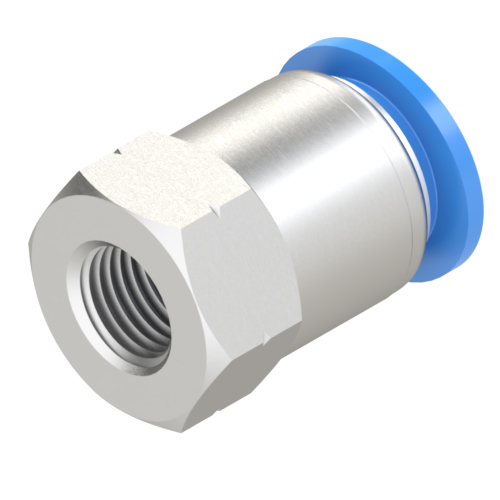

PCF 5/8-N02 | 5/8 O.D Tube - 1/4 NPT Thread Female Connector | Push to Connect Fitting
PCF 5/8-N02 female connector push to connect fitting is used to connect 5/8" O.D tubing to 1/4 NPT male stud thread in an inline configuration. 5/8" O.D tubing to 1/4 NPT female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 5/8" tubing to 1/4 NPT female connector pneumatic fittings provide a leak-free means of easily connecting hoses in your compressed air system.
Product Specifications
| Applicable Tubing O.D.: | 5/8" |
| Connection Thread: | 1/4 NPT |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
