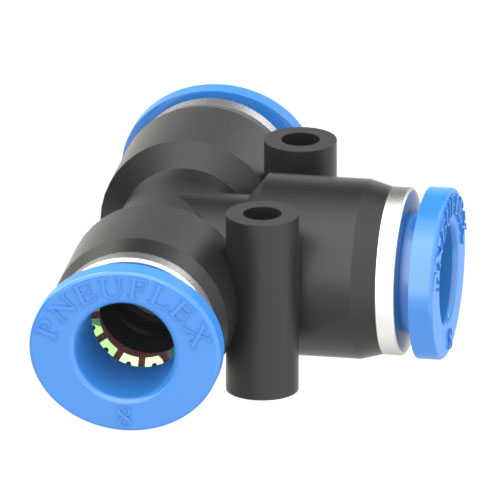

PE 08 | 8mm Union Tee - 8mm Push to Connect Fitting
8mm push to connect fitting allows connect and disconnect 8mm tubes easily and quickly without causing damage to 8mm tubes. As the most generally used model, 8mm union tee is used to branch three 8mm O.D tubes at both 90° angles. 8mm union tee push to connect fitting is widely used in pneumatic system.
Product Specifications
| Applicable Tubing O.D.: | 8mm |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT Plastic |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC |
- Technical Data
- Downloads
Dimensions of PE 08 | 8mm Union Tee - 8mm Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | ØP | B | L | E | N | ØK | O1 | O2 | C |
| PE 08 | 8mm | 15 | 46 | 19 | 23 | 18 | 3.2 | 16 | 13.8 | 13.8 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
Category: Composite Push to Connect Fittings / PE Union Tee
