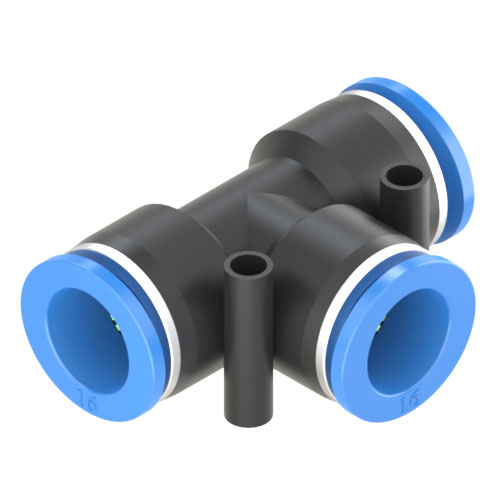

PE 16 | 16mm Union Tee - 16mm Push to Connect Fitting
16mm push to connect fitting allows connect and disconnect 16mm tubes easily and quickly without causing damage to 16mm tubes. 16mm union tee push to connect fitting is used to connect three 16mm O.D tubes at both 90° angles.
Product Specifications
| Applicable Tubing O.D.: | 16mm |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT Plastic |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC |
- Technical Data
- Downloads
Dimensions of PE 16 | 16mm Union Tee - 16mm Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | ØP | B | L | E | N | ØK | O1 | O2 | C |
| PE 16 | 16mm | 26 | 64.4 | 24 | 32.2 | 31 | 5.3 | 26.5 | 24.5 | 23.8 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
Category: Composite Push to Connect Fittings / PE Union Tee
