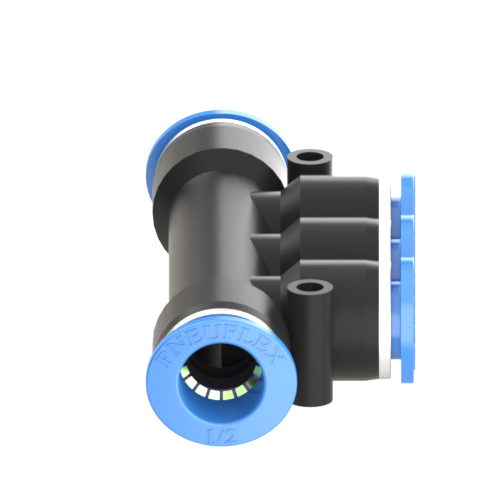

PKG 1/2-3/8 | 1/2 to 3/8 Union Branch Reducer Push to Connect Fitting
1/2" O.D tubing x 3/8" O.D tubing union branch reducer push to connect fitting is used for in-line distribution of air to three smaller diameter tubing connections at a right angle to the supply line. 1/2" O.D tubing x 3/8" O.D tubing union branch connector reducer push to connect fitting is made of strong thermoplastic (PBT) and stainless steel tube gripping claw. 1/2" O.D tubing x 3/8" O.D tubing union branch reducer push to connect fittings are a type of fitting that is easy to assemble and used for low-flow tubing applications.
Product Specifications
| Applicable Tubing O.D.1: | 1/2" |
| Applicable Tubing O.D.2: | 3/8" |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT Plastic |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
