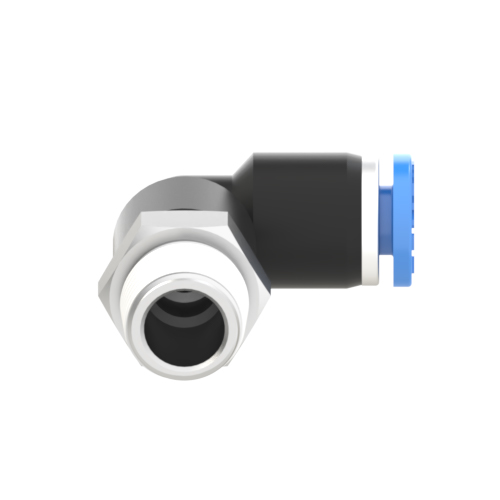

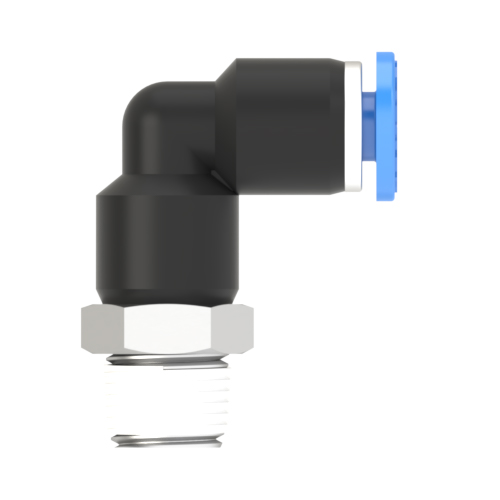

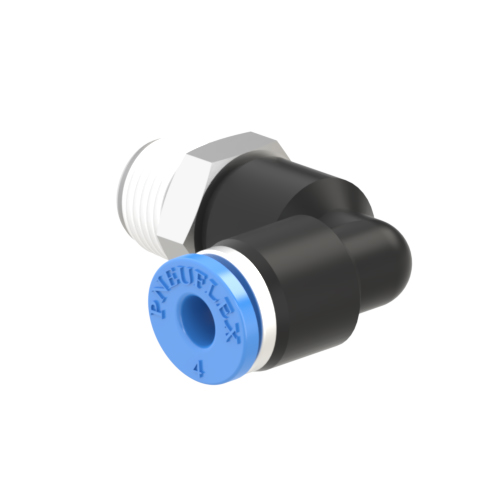

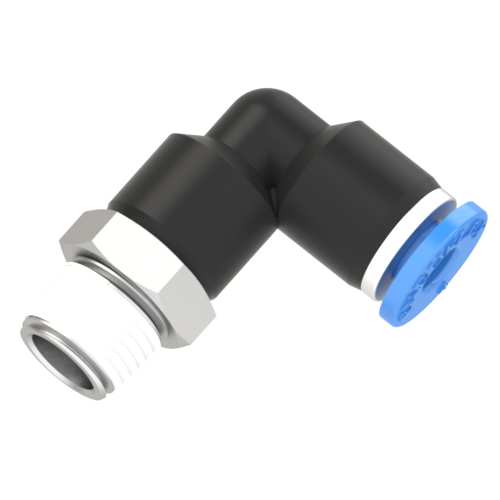

PL 04-01 | 4mm Tube - R, PT, BSPT 1/8 Thread Male Elbow | Push to Connect Fitting
PL 04-01 male elbow push to connect fitting is designed for using to connect 4mm O.D tubing to R, PT, BSPT 1/8 female threaded connection at a 90-degree angle. The swivel feature on the male stud end allows setting the tube connector where you want after tightening the thread. The male thread is nickel-plated brass and has pre-applied Teflon thread sealant. 4mm tubing to R, PT, BSPT 1/8 male elbow pneumatic fittings are designed to suit your pneumatic piping needs perfectly.
Product Specifications
| Applicable Tubing O.D.: | 4mm |
| Connection Thread: | R1/8 |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT Plastic |
| Thread Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | 0∼60°C | 32∼140°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC |
Category: Composite Push to Connect Fittings / PL Male Elbow
