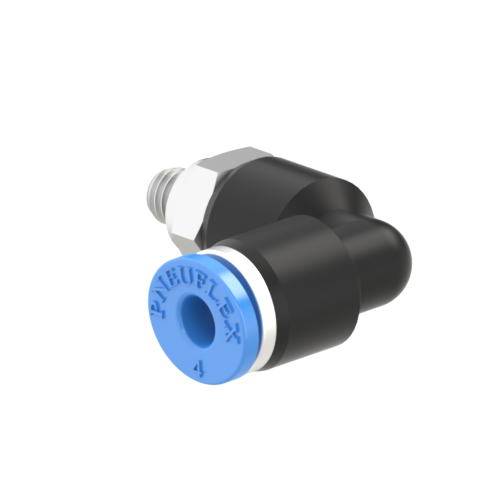

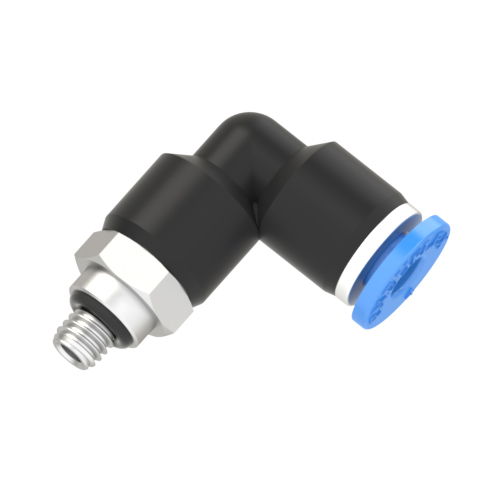

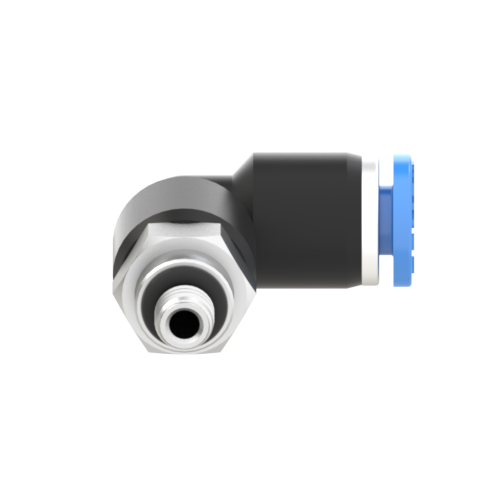

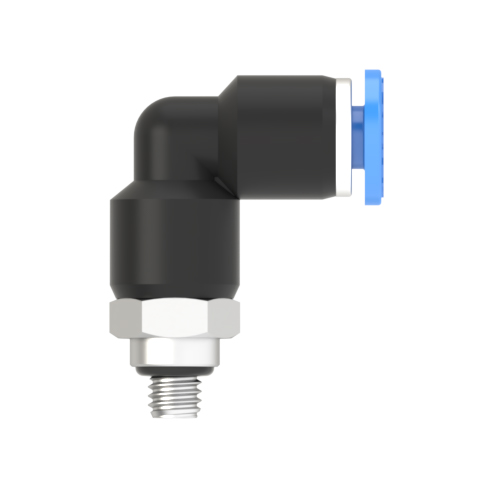

PL 04-M6 | 4mm Tube - M6 × 1 Thread Male Elbow | Push to Connect Fitting

PL 04-M6 male elbow push to connect fitting is designed for using to connect 4mm O.D tubing to M6 x 1 female threaded connection at a right angle. The swivel feature on the male stud end allows setting the tube connector where you want after tightening the thread. Pre-applied O-ring on M6 thread is ready to use without additional sealing. Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

Product Specifications

Applicable Tubing O.D.:	4mm
Connection Thread:	M6 x 1

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	PBT Plastic
Thread Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	0∼60°C | 32∼140°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC
