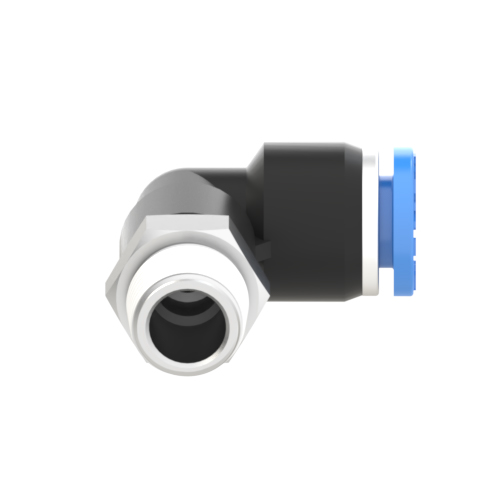

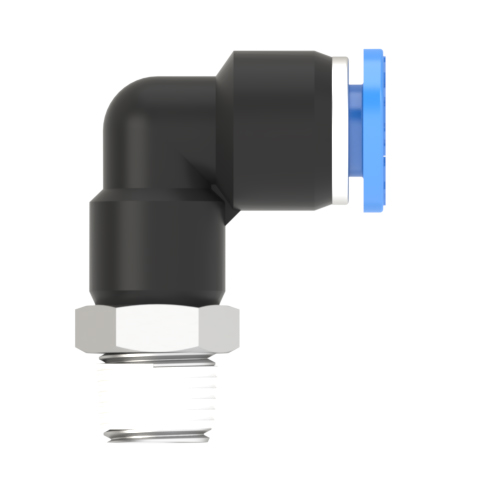

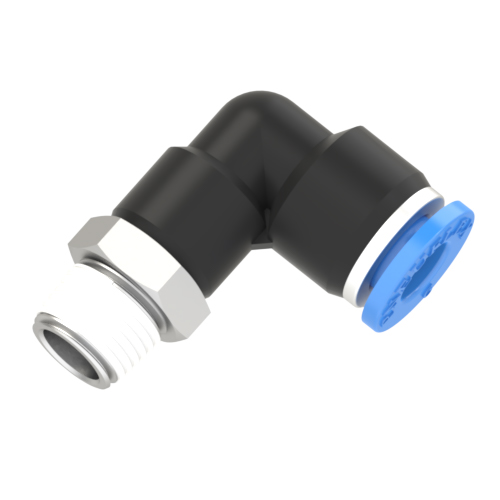

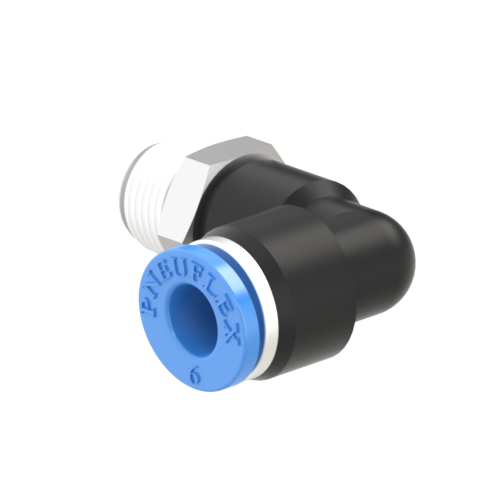

PL 06-01 | 6mm Tube - R, PT, BSPT 1/8 Thread Male Elbow | Push to Connect Fitting

PL 06-01 male elbow push to connect fitting is designed for using to connect 6mm O.D tubing to R, PT, BSPT 1/8 female threaded connection at a 90-degree angle. The swivel feature on the male stud end allows setting the tube connector where you want after tightening the thread. The male thread is nickel-plated brass and has pre-applied Teflon thread sealant. 6mm tubing to R, PT, BSPT 1/8 male elbow pneumatic fittings easy to install, flexible and space-saving, 360-degree rotate freely, release rings adopt ellipse design, which can be removed conveniently.

Product Specifications

Applicable Tubing O.D.:	6mm
Connection Thread:	R1/8

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	PBT Plastic
Thread Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	0∼60°C | 32∼140°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC
