PL 06-M4 | 6mm Tube - M4 × 0.7 Thread Male Elbow | Push to Connect Fitting

PL 06-M4 male elbow push to connect fitting is designed for using to connect 6mm O.D tubing to M4 x 0.7 female threaded connection at a right angle. The swivel feature on the male stud end allows setting the tube connector where you want after tightening the thread. Pre-applied O-ring on M4 thread is ready to use without additional sealing. Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

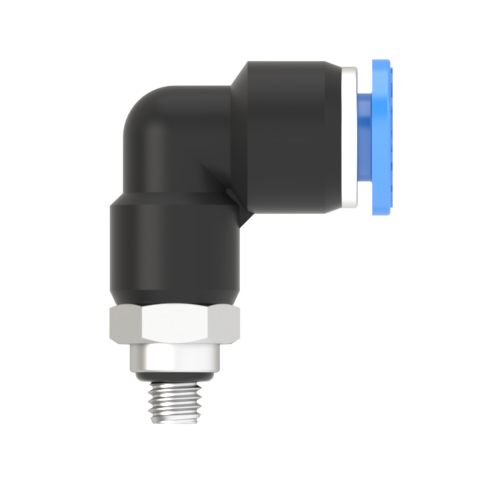

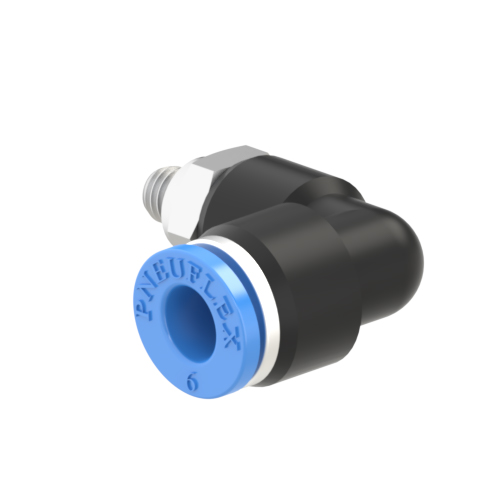

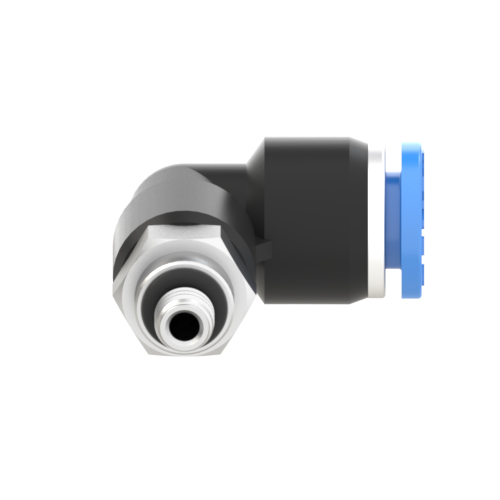

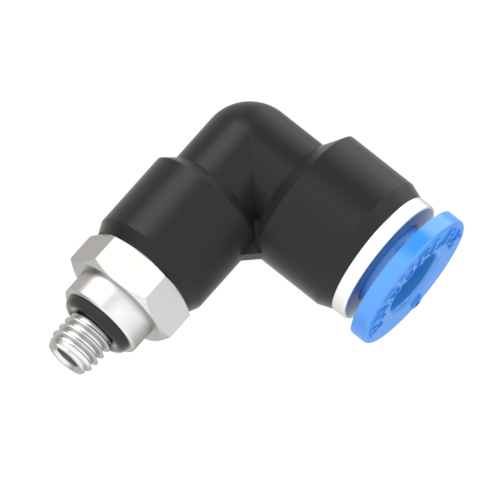

6mm m4 x 0.7 male elbow push to connect fitting 6mm Tube, M4 x 0.7 Male Elbow 6mm Tube, M4 x 0.7 Push to Connect Fitting 6mm Tube, M4 x 0.7 Push to Connect Fitting Male Elbow
Product Specifications
Applicable Tubing O.D.: 6mm
Connection Thread: M4 x 0.7
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: PBT Plastic
Thread Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC
Category: Composite Push to Connect Fittings / PL Male Elbow
