push to connect fittings 5 way

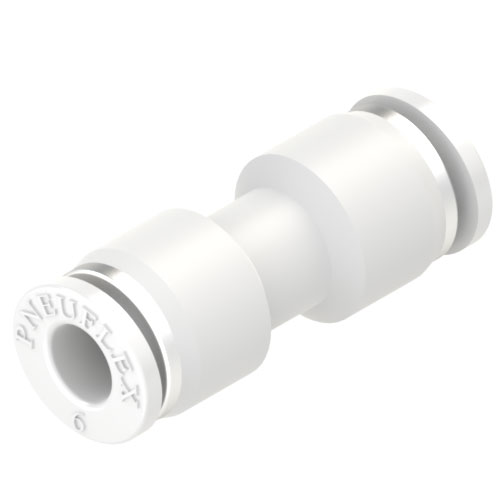

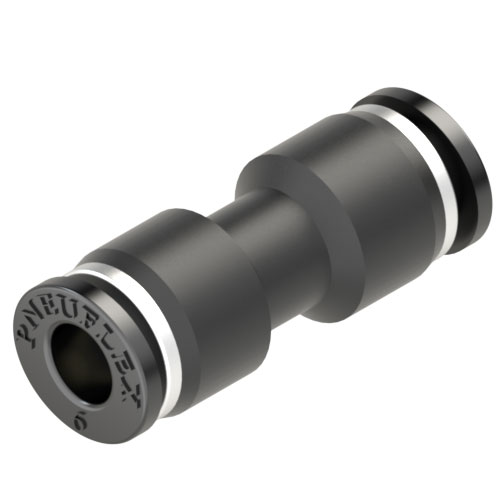

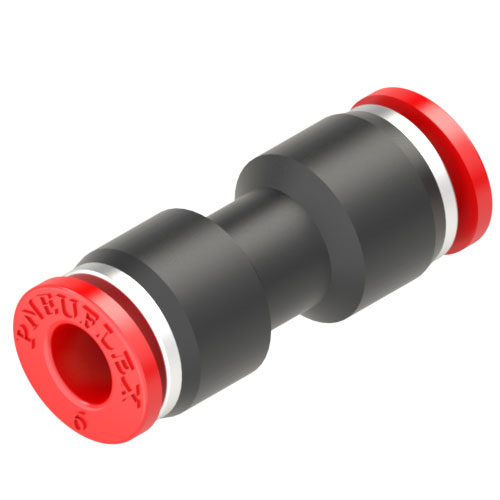

6mm union straight push to connect fitting is widely used in pneumatic applications. 6mm push to connect fitting is used for connecting two 6mm O.D tubes at both ends. To use 6mm push to connect fitting, simply push tubing to its bottoms, stainless steel lock claw built inside grips tubing tightly. Tubing could be pulled out easily by pressing release sleeve.

6mm union straight push to connect fitting 6mm push to connect fitting 6mm union straight 6mm tube push to connect fitting
Product Specifications
Applicable Tubing O.D.: 6mm
Fluid Admitted: Air, Vacuum, Water (no freezing)
Body Material: PBT Plastic
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC Teflon Tubing ...
Request for Quotation
Catalog:
RoHS Compliant

Dimensions of PU 06 | 6mm Union Straight | 6mm Push to Connect Fitting

pu union straight construction

pu union straight drawing

Part No. Applicable Tubing ΦD ØP B L O1 O2 C 3D Download
PU 06 6mm 13.5 36 15.9 13.8 12.4 11.8

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.

How to connect and disconnect PU 06 | 6mm Union Straight | 6mm Push to Connect Fitting

how to use union straight push to connect fitting
