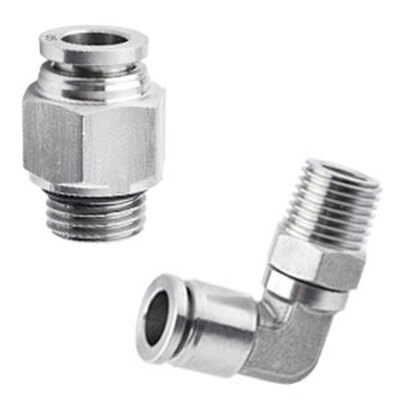

316 Stainless Steel Push to Connect Fittings
Stainless steel push to connect fittings made of SUS316 are suitable for use in corrosive environments, to carry aggressive fluids and for any applications in the food and chemical industry.
Product Specifications
| Fluid Admitted: | Air, Vacuum, Water (no freezing), Steam ... |
| Body Material: | 316 Stainless Steel |
| Thread Material: | 316 Stainless Steel |
| Seal Material: | FKM (Viton) |
| Working Pressure: | 0∼2.0MPa | 0∼290psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼150°C | -4∼302°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / Teflon Tubing ... |
