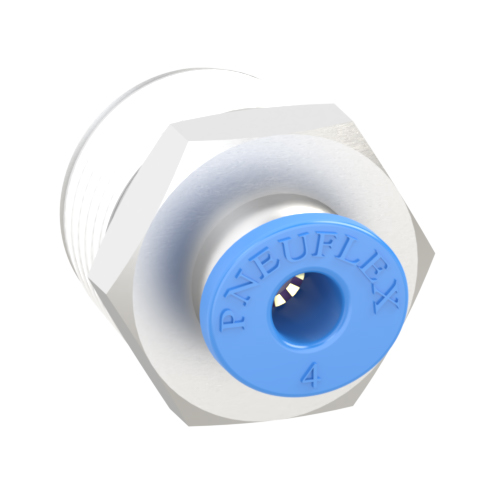

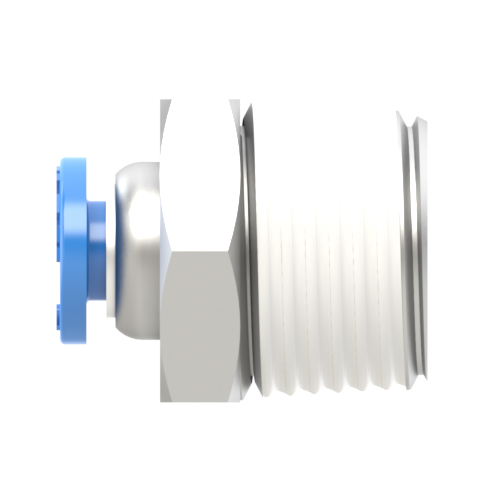

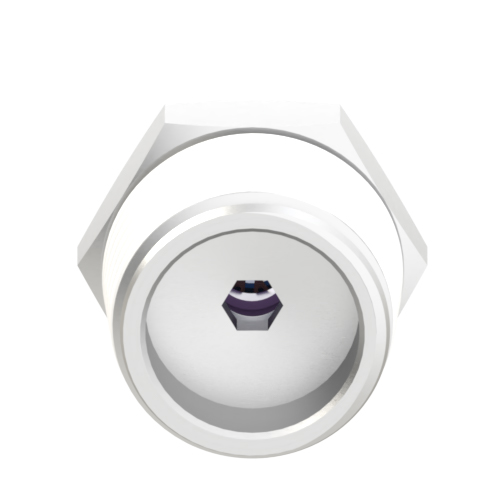

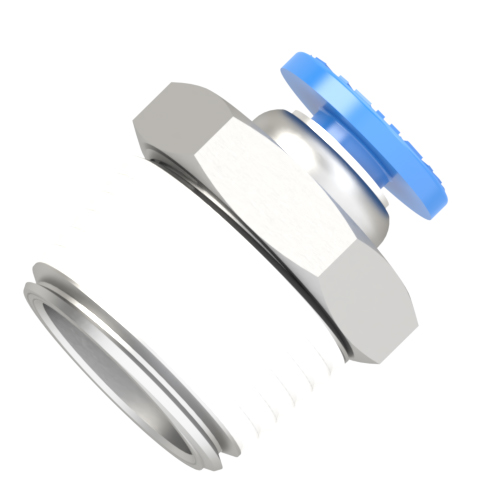

PC 04-03 male connector push to connect fitting is used to connect 4mm O.D tubing to R, PT, BSPT 3/8 female stud thread in a straight line. 4mm O.D tubing to R, PT, BSPT 3/8 male connector push to connect fitting features a external hexagon nickel-plated brass body. Internal hexagon on straight adapter allows assembly in confined spaces. PC 04-03 male straight connector has pre-coated Teflon thread sealant. Oval or round release ring helps to connect or disconnect tubing easily by manual, no special tools required.
Product Specifications
| Applicable Tubing O.D.: | 4mm |
| Connection Thread: | R3/8 |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 04-03
| Part No. | Applicable Tubing ΦD | Connection Thread T | ØP | A | B | L | H1 | H2 | O1 | O2 | C |
| PC 04-03 | 4mm | R3/8 | 9.8 | 10.5 | 20.6 | 13.8 | 17 | 3 | 11.8 | 10.3 | 10.3 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
