PC Male Connector | Push to Connect Fitting

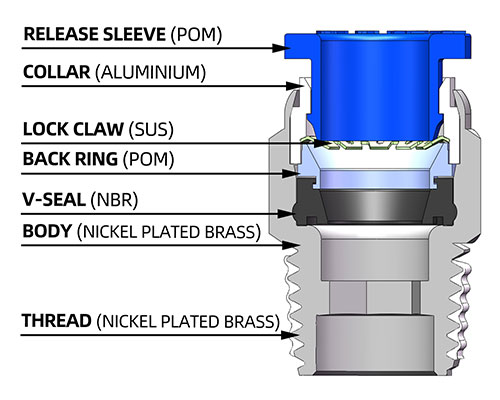

Male connector (male straight) is a kind of widely used push to connect fitting in most pneumatic systems. Male connector push to connect fitting connects tube to a female threaded port in line. Release collar and stainless steel lock-claw built in male connector push to connect fitting offer a quick hold and release mechanism to provide easy connection and disconnection of tube without causing damage to the tube. Male connector is made of brass in nickel plated for corrosion resistance. External tightening with a flat wrench or socket wrench, internal adjustment with an allen wrench. Accommodates metric tube O.D ranging from 4mm to 16mm, inch tube O.D ranging from 1/8" to 5/8". Thread sizes range from 10-32UNF, M5, 1/8... to 3/4 in different thread types.

Available Shape of Release Sleeve: Round and Oval

Available Color of Release Sleeve: Blue, Red, Black, Grey or Custom Color

Product Specifications

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	-20∼80°C | -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC...

Installation (PDF) of PC Male Connector

RoHS Compliance of PC Male Connector
