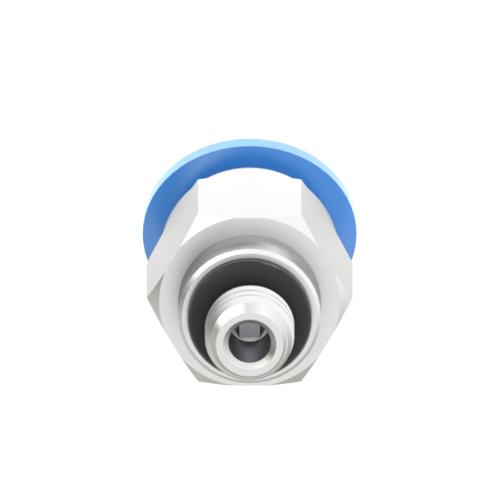

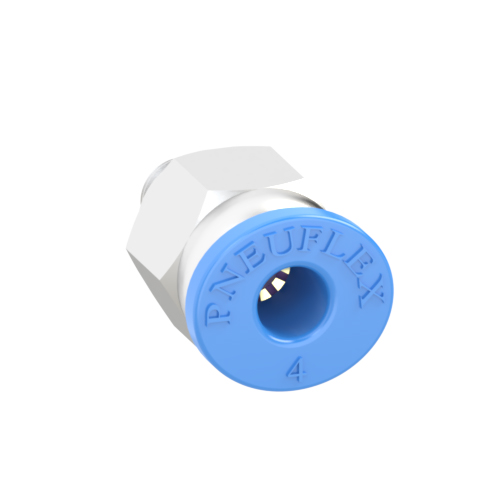

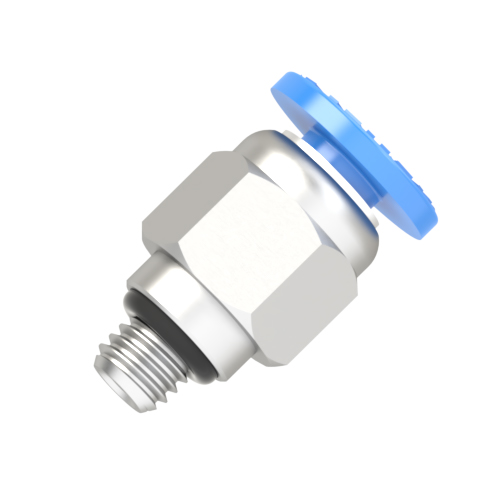

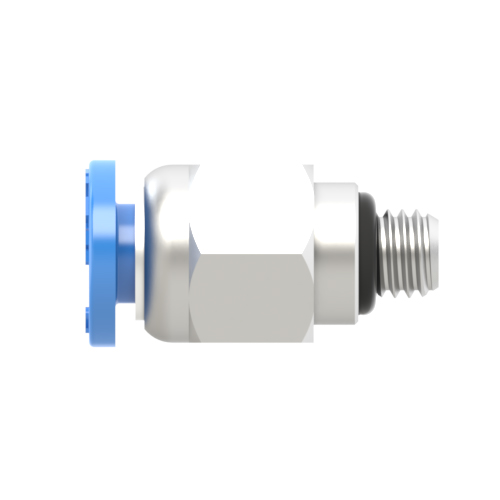

PC 04-M5 male connector push to connect fitting is designed to connect 4mm O.D tube to M5 x 0.8 female stud thread in straight line. The body of 4mm tube M5 thread male connector is made of nickel plated brass. M5 male thread is with an captive o-ring for a superior and efficient seal. External tightening with a flat wrench or socket wrench.

4mm m5 x 0.8 male connector push to connect fitting 4mm Tube, M5 x 0.8 Male Connector 4mm Tube, M5 x 0.8 Push to Connect Fitting 4mm Tube, M5 x 0.8 Push to Connect Fitting Male Connector
Product Specifications
Applicable Tubing O.D.: 4mm
Connection Thread: M5 x 0.8
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC...

Dimensions of PC 04-M5 | 4mm Tube - M5 x 0.8 Male Connector | Push to Connect Fitting

structure of 4mm M5 Male Connector

Dimension of 4mm M5 Male Connector

Part No. Applicable Tubing ΦD Connection Thread T ØP A B L H1 O1 O2 C
PC 04-M5 4mm M5 x 0.8 9.8 4.5 19.5 13.3 10 11.8 10.3 10.3

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.

How to use PC 04-M5 | 4mm Tube - M5 x 0.8 Male Connector | Push to Connect Fitting

how to use male connector push to connect fitting

3D file (.step) of PC 04-M5 Male Connector Push to Connect Fitting
RoHS Compliance of Push to Connect Fitting
