PC 05-01

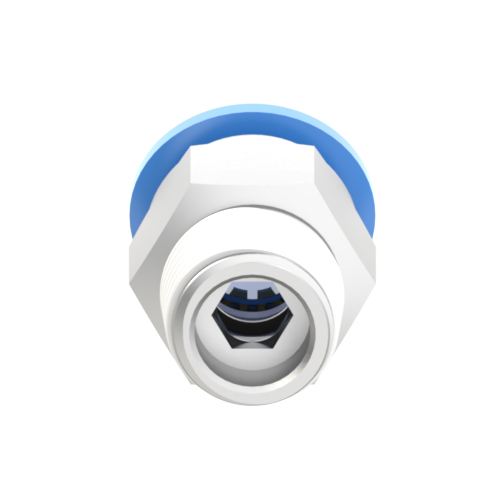

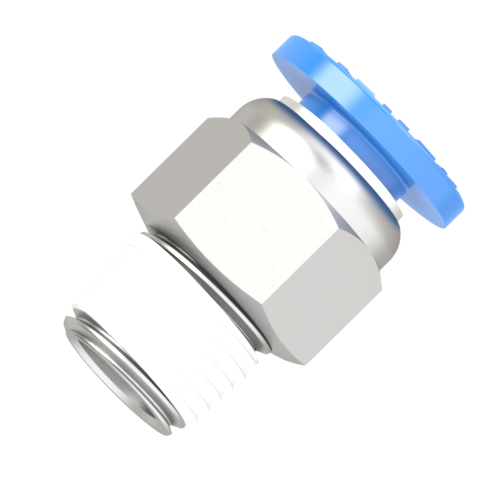

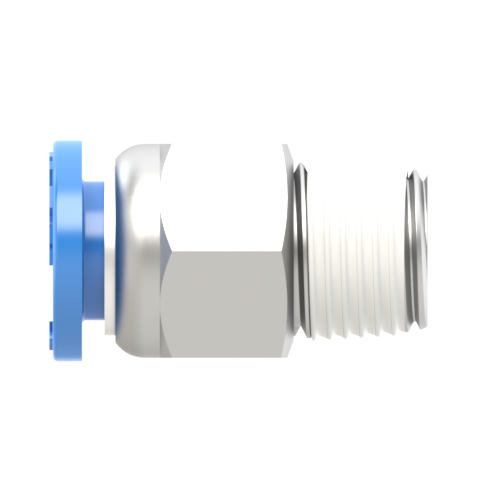

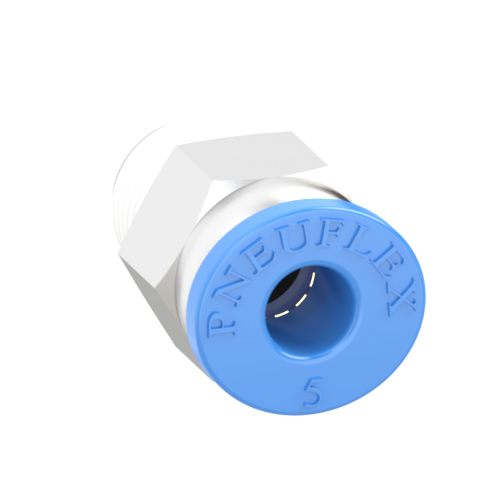

PC 05-01 male connector push to connect fitting is used to connect 5mm O.D tubing to R, PT, BSPT 1/8 female stud thread in a straight line. 5mm O.D tubing to R, PT, BSPT 1/8 male connector push to connect fitting features a external hexagon nickel-plated brass body. Internal hexagon on straight adapter allows assembly in confined spaces. PC 05-01 male straight connector has pre-coated Teflon thread sealant. Oval or round release ring helps to connect or disconnect tubing easily by manual, no special tools required.
Product Specifications
| Applicable Tubing O.D.: | 5mm |
| Connection Thread: | R1/8 |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 05-01
| Part No. | Applicable Tubing ΦD | Connection Thread T |
| PC 05-01 | 5mm | R1/8 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
How to use PC 05-01
