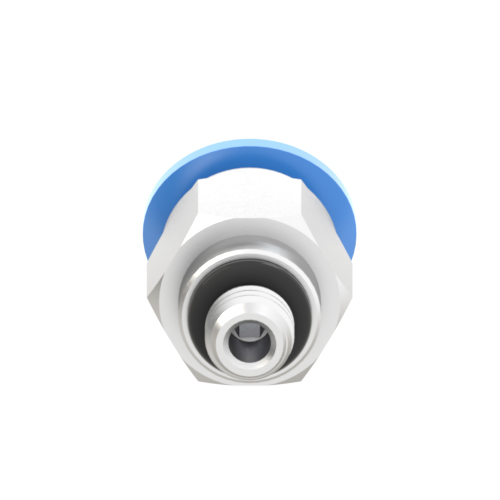

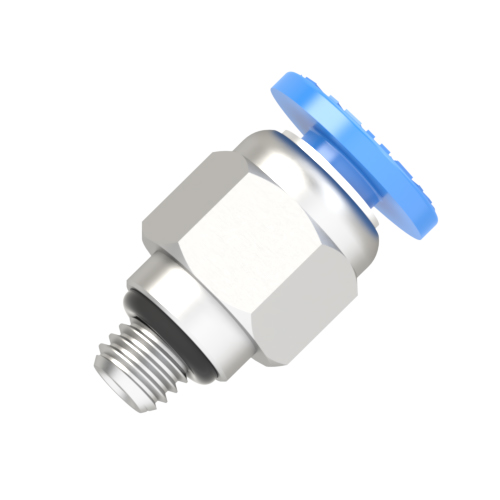

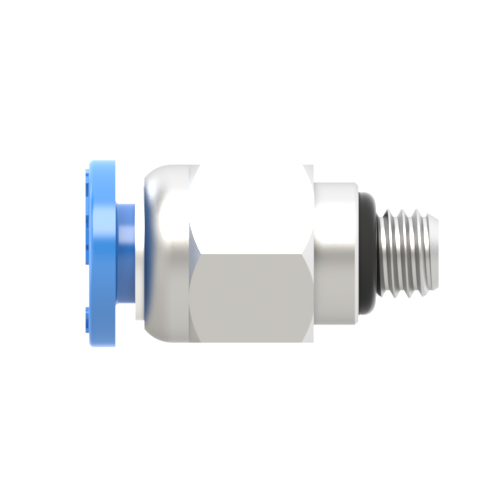

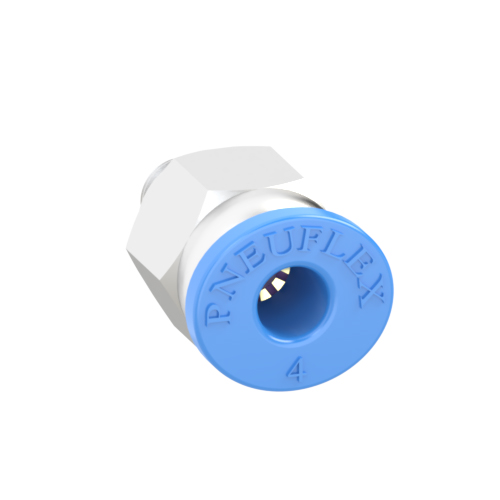

PC 04-M4 | 4mm Tube - M4 × 0.7 Thread Male Connector | Push to Connect Fitting
PC 04-M4 push to connect fitting male connector is used to connect a 4mm O.D tube to a M4×0.7 female thread inline. The body of male connector is made from nickel plated brass. M4×0.7 male thread is with an captive o-ring for a superior and efficient seal. External tightening with a flat wrench or socket wrench.
Product Specifications
| Applicable Tubing O.D.: | 4mm |
| Connection Thread: | M4 x 0.7 |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |

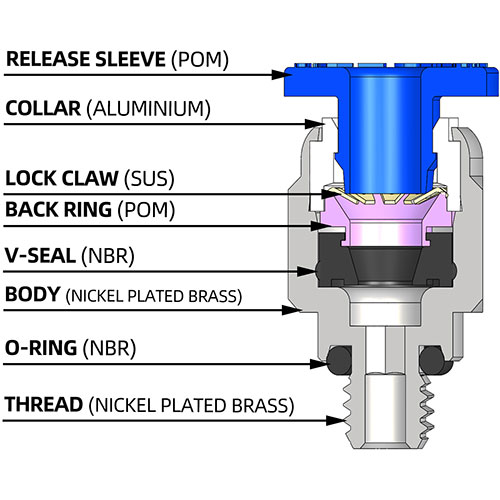

| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads

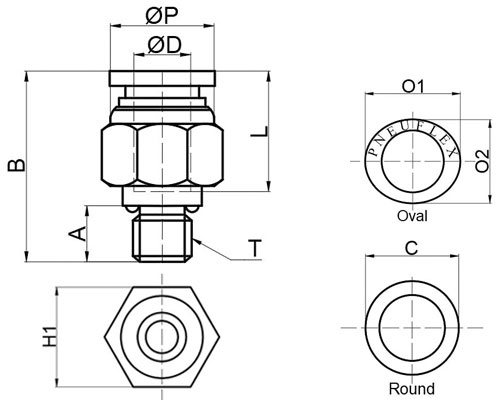

Dimensions of PC 04-M4 | 4mm Tube - M4 × 0.7 Thread Male Connector | Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | Connection Thread T | A | B | L | H1 |
| PC 04-M4 | 4mm | M4 x 0.7 | 4.5 | 19.5 | 13.3 | 10 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
