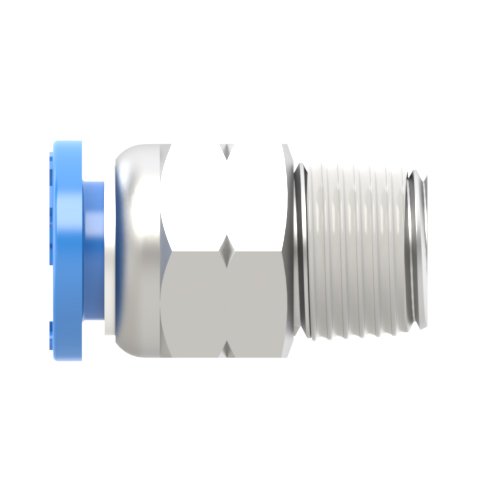

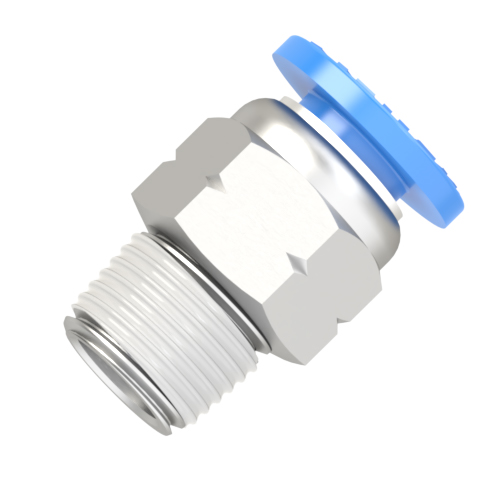

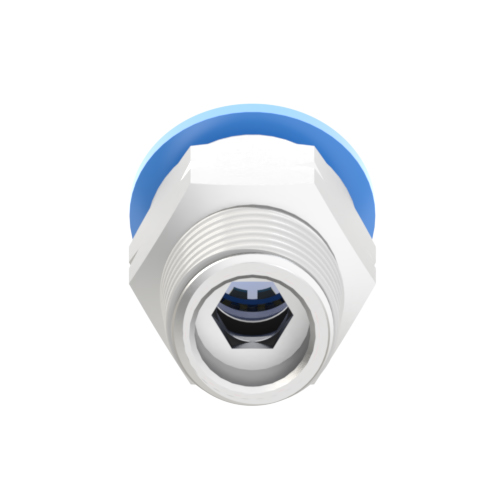

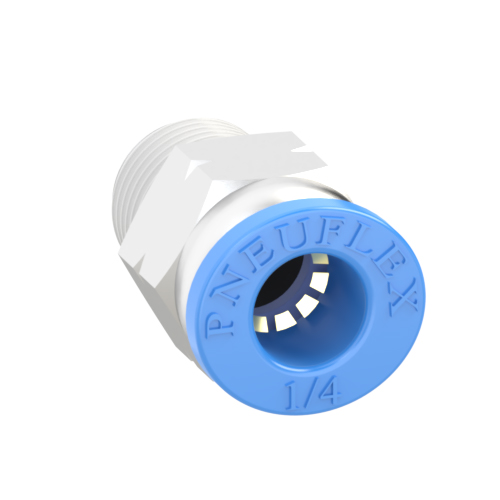

PC 1/4-N01 | 1/4 Inch O.D Tube 1/8 NPT Thread Male Connector | Push to Connect Fitting
1/4 inch O.D tube 1/8 NPT thread push to connect fitting male connector is used to tube a 1/8 NPT female thread in line. Release collar and stainless steel lock-claw built in 1/8 NPT male connector push to connect fitting offer a quick hold and release mechanism to provide easy connection and disconnection of tube without causing damage to the tube. Pre-coated Teflon thread are ready to use without additional seal. 1/4 inch O.D tube 1/8 NPT thread push to connect fitting male connector is made of nickel plated brass for corrosion resistance. External tightening with a flat wrench or socket wrench, internal adjustment with an allen wrench.
| Applicable Tubing O.D.: | 1/4" |
| Connection Thread: | 1/8 NPT |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 1/4-N01 | 1/4 Inch O.D Tube 1/8 NPT Thread Male Connector | Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | Connection Thread T | ØP | A | B | L | H1 | H2 |
| PC 1/4-N01 | 1/4" | 1/8 NPT | 11.9mm | 7.5mm | 21mm | 16mm | 1/2" | 5/32" |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.

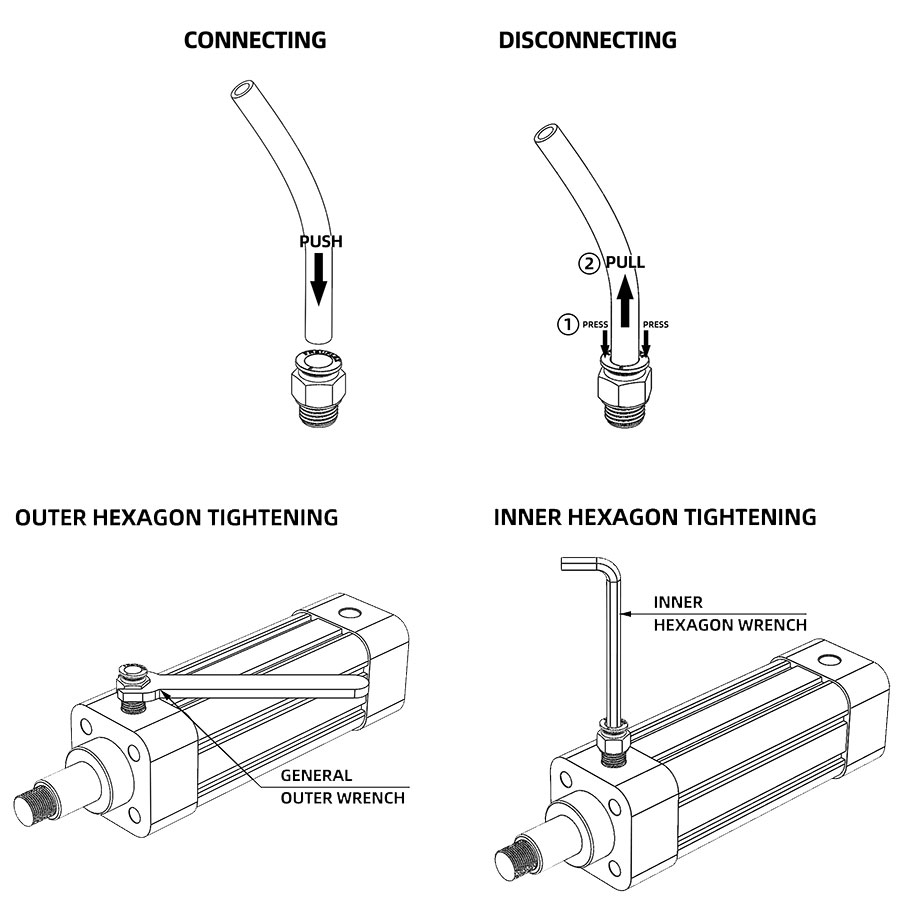

How to use PC 1/4-N01 | 1/4 Inch O.D Tube 1/8 NPT Thread Male Connector | Push to Connect Fitting
Yes. We have multiple color release sleeves. See below images for reference.
