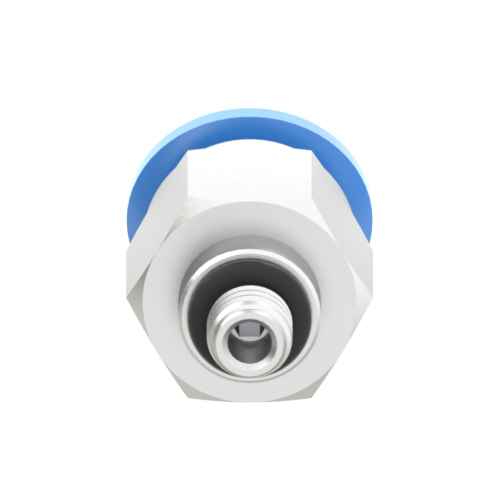

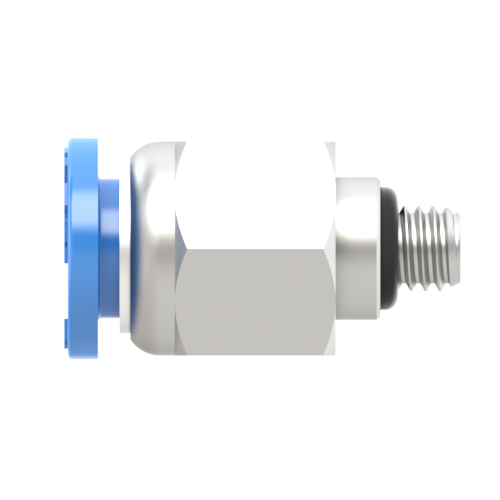

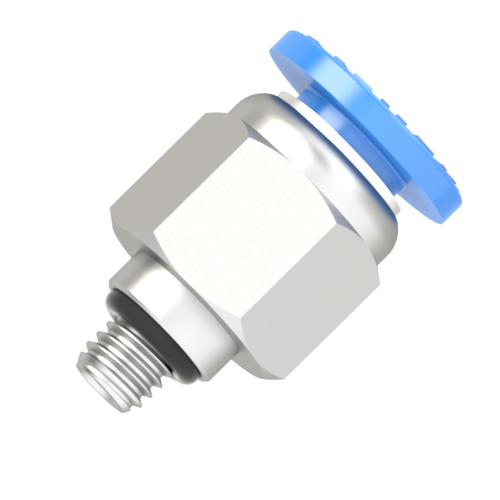

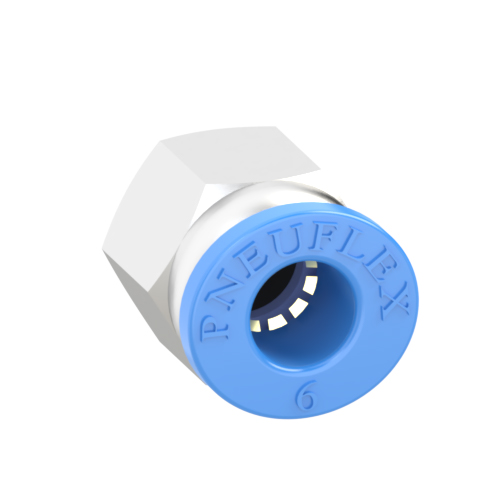

PC 06-M5 male connector push to connect fitting is designed to connect 6mm O.D tubing to M5 x 0.8 female stud thread in straight line. 6mm O.D tubing to M5 male connector push to connect fitting features a external hexagon nickel-plated brass body. Internal hexagon on straight adapter allows assembly in confined spaces. M5 x 0.8 thread has O-ring for sealing. Oval or round release ring helps to connect or disconnect tubing easily by manual, no special tools required.

6mm m5 x 0.8 male connector push to connect fitting 6mm Tube, M5 x 0.8 Male Connector 6mm Tube, M5 x 0.8 Push to Connect Fitting 6mm Tube, M5 x 0.8 Push to Connect Fitting Male Connector
Product Specifications
Applicable Tubing O.D.: 6mm
Connection Thread: M5 x 0.8
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC...

Dimensions of PC 06-M5

images/pneuflex-products/push-to-connect-fittings/pc-male-connector/male-connector-push-to-connect-fittings-structure.jpg#joomlaImage://local-images/pneuflex-products/push-to-connect-fittings/pc-male-connector/male-connector-push-to-connect-fittings-structure.jpg?width=500&height=400

dimensions of male connector push to connect fitting

Part No. Applicable Tubing ΦD Connection Thread T ØP A B L H1 O1 O2 C
PC 06-M5 6mm M5 x 0.8 11.8 4.5 22 15.5 12 13.8 12.4 12.4

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
