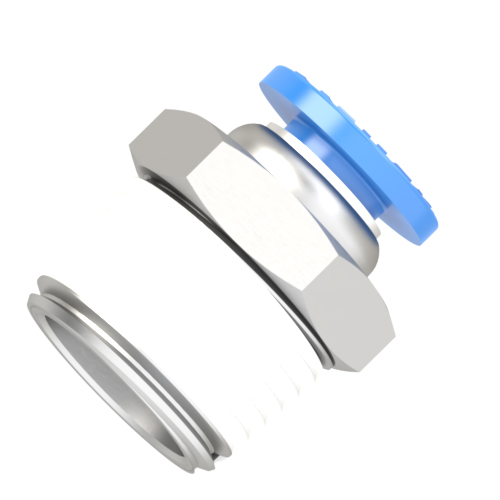

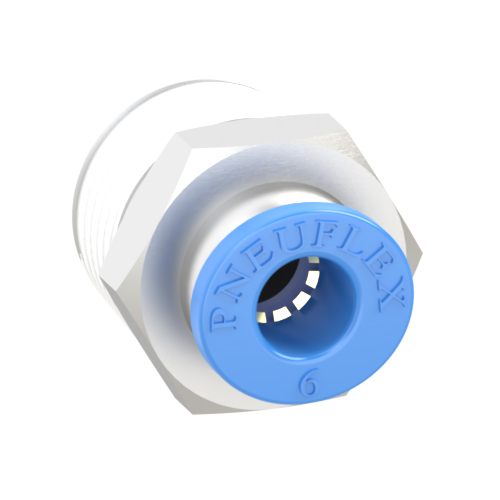

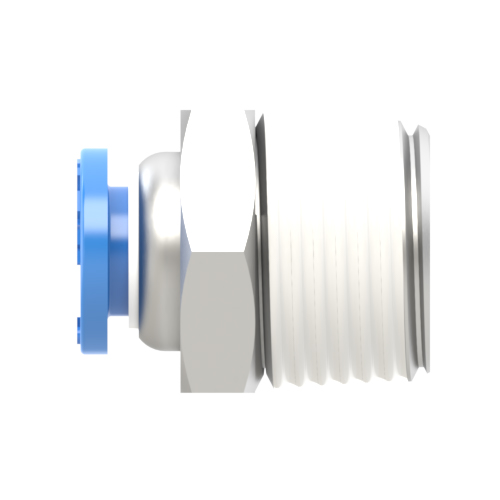

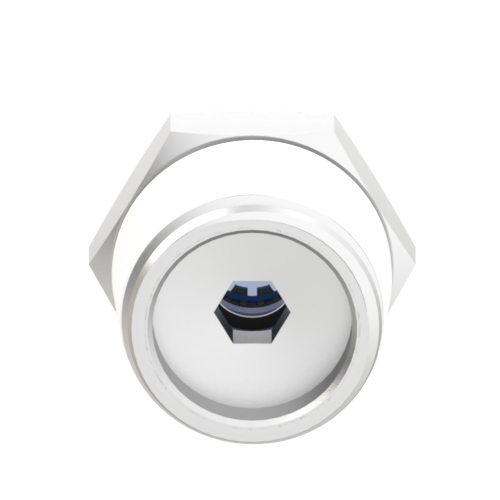

PC 06-03 male connector push to connect fitting is designed to connect 6mm O.D tubing to R, PT, BSPT 3/8 female threaded pneumatic system in a straight line. 6mm O.D tubing to R, PT, BSPT 3/8 male connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. Internal hexagon on straight adapter allows assembly in confined spaces. 6mm tubing to R, PT, BSPT 3/8 male connector pneumatic fittings are a type of fitting that is easy to assemble and used for low-flow tubing applications.

6mm - R 3/8 male connector push to connect fitting 6mm Tube, R 3/8 Male Connector 6mm Tube, R 3/8 Push to Connect Fitting 6mm Tube, R 3/8 Push to Connect Fitting Male Connector
Product Specifications
Applicable Tubing O.D.: 6mm
Connection Thread: R3/8
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC...

Dimensions of PC 06-03 | 6mm Tube - R, PT, BSPT 3/8 Thread Male Connector | Push to Connect Fitting

images/pneuflex-products/push-to-connect-fittings/pc-male-connector/male-connector-push-to-connect-fittings-structure.jpg#joomlaImage://local-images/pneuflex-products/push-to-connect-fittings/pc-male-connector/male-connector-push-to-connect-fittings-structure.jpg?width=500&height=400

dimensions of male connector push to connect fitting

Part No. Applicable Tubing ΦD Connection Thread T ØP A B L H1 H2 O1 O2 C
PC 06-03 6mm R3/8 11.8 10.5 21 15.5 17 4 13.8 12.4 12.4

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
