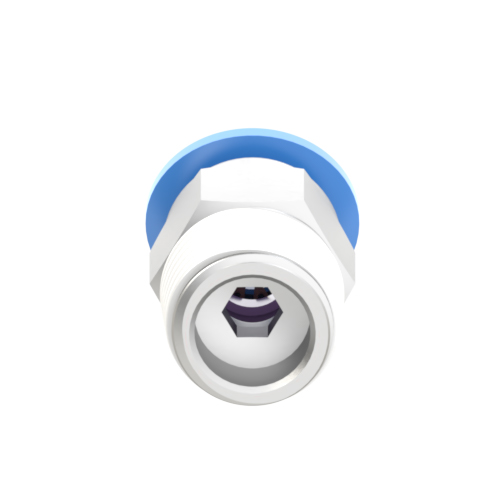

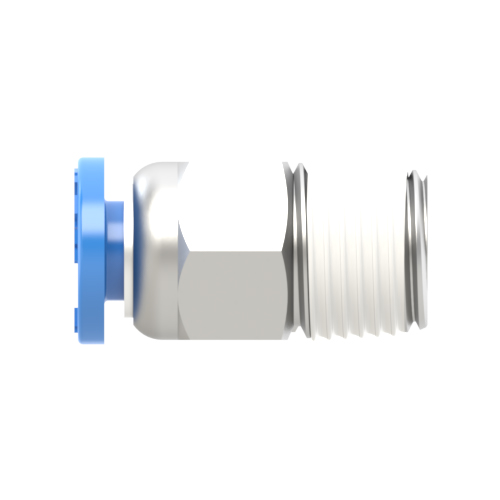

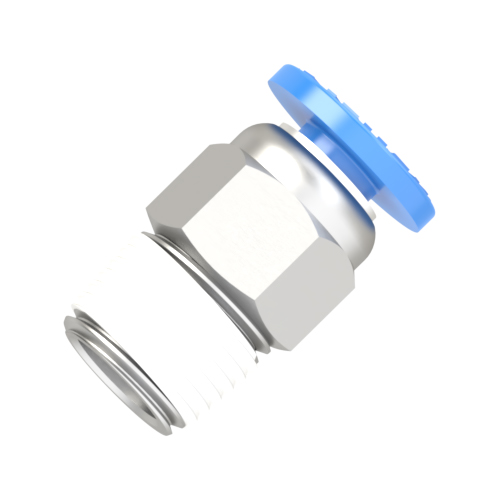

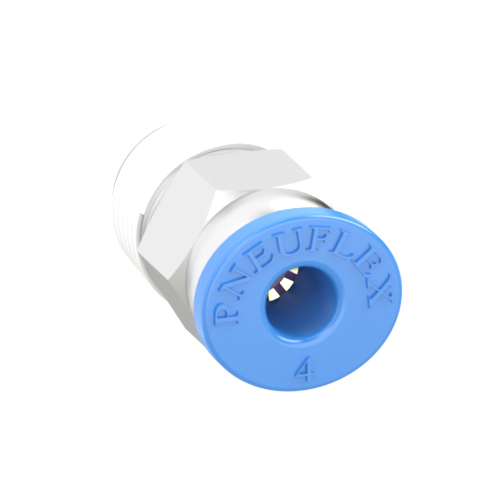

PC 04-01 male connector push to connect fitting is used to connect 4mm O.D tubing to R, PT, BSPT 1/8 female stud thread in a straight line. 4mm O.D tubing to R, PT, BSPT 1/8 male connector push to connect fitting features a external hexagon nickel-plated brass body. Internal hexagon on straight adapter allows assembly in confined spaces. PC 04-01 male straight connector has pre-coated Teflon thread sealant. Oval or round release ring helps to connect or disconnect tubing easily by manual, no special tools required.

4mm - R 1/8 male connector push to connect fitting 4mm Tube, R 1/8 Male Connector 4mm Tube, R 1/8 Push to Connect Fitting 4mm Tube, R 1/8 Push to Connect Fitting Male Connector
Product Specifications
Applicable Tubing O.D.: 4mm
Connection Thread: R1/8
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC...

Dimensions of PC 04-01

images/pneuflex-products/push-to-connect-fittings/pc-male-connector/male-connector-push-to-connect-fittings-structure.jpg#joomlaImage://local-images/pneuflex-products/push-to-connect-fittings/pc-male-connector/male-connector-push-to-connect-fittings-structure.jpg?width=500&height=400

dimensions of male connector push to connect fitting

Part No. Applicable Tubing ΦD Connection Thread T ØP A B L H1 H2 O1 O2 C
PC 04-01 4mm R1/8 9.8 7.5 19.6 13.8 10 3 11.8 10.3 10.3

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
