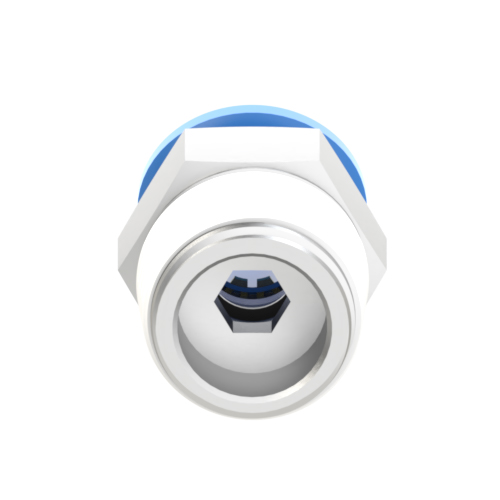

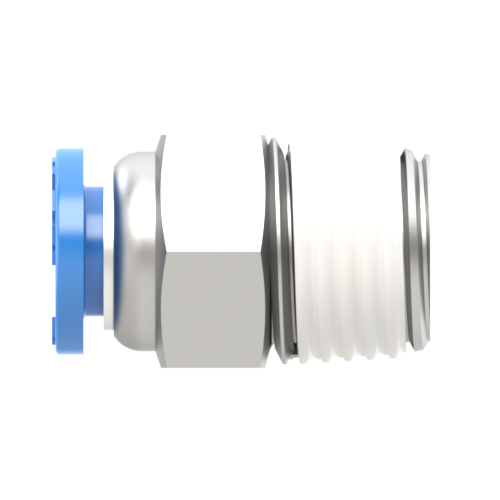

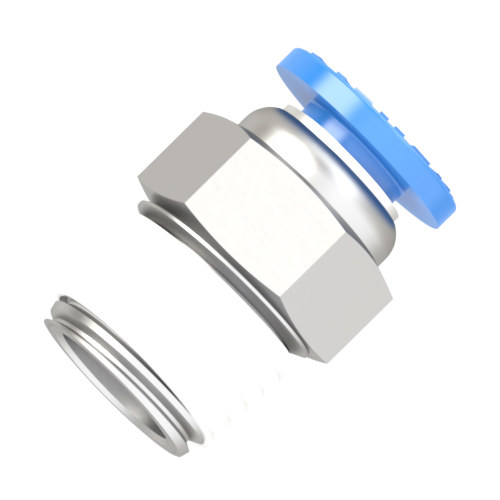

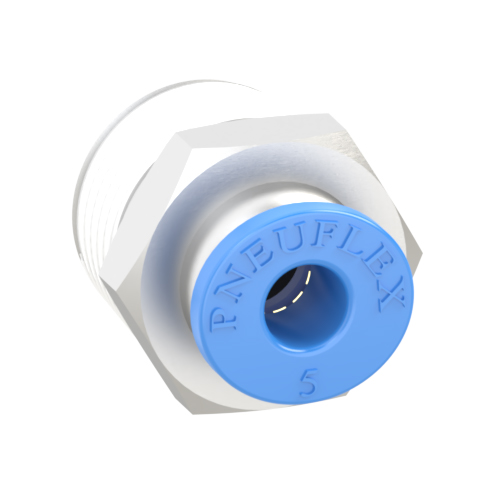

PC 05-02
Product Specifications
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 05-02
| Part No. |
| PC 05-02 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
Category: Composite Push to Connect Fittings / PC Male Connector
