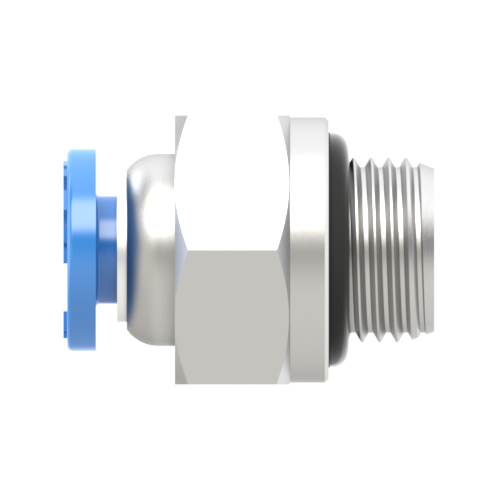

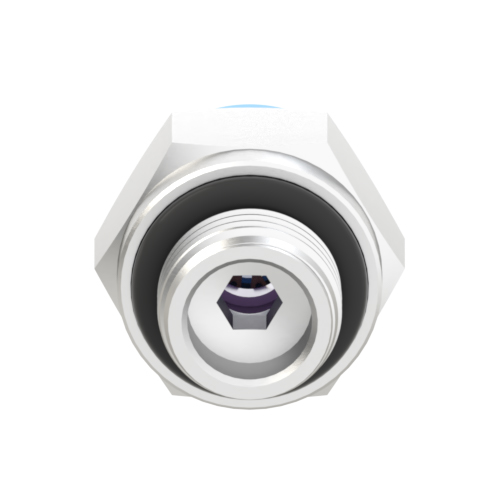

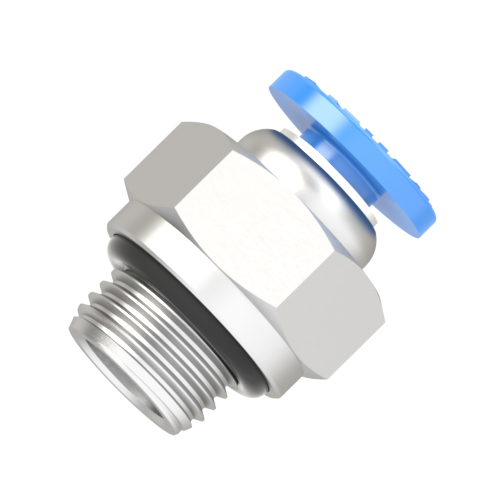

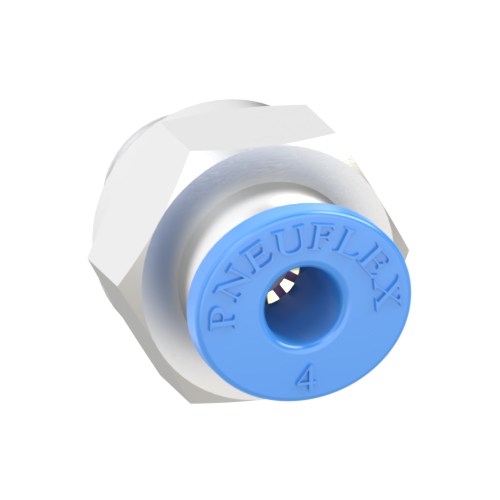

PC 04-G01 | 4mm Tube - BSP, BSPP, G 1/8 Thread Male Connector | Push to Connect Fitting
PC 04-G01 male connector push to connect fitting is designed to connect 4mm O.D tubing to BSP, BSPP, G 1/8 female threaded pneumatic system in a straight line. 4mm O.D tubing to BSP, BSPP, G 1/8 male connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. Internal hexagon on straight adapter allows assembly in confined spaces. 4mm tubing to BSP, BSPP, G 1/8 male connector pneumatic fittings are a type of fitting that is easy to assemble and used for low-flow tubing applications.
| Applicable Tubing O.D.: | 4mm |
| Connection Thread: | G1/8 |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 04-G01 | 4mm Tube - BSP, BSPP, G 1/8 Thread Male Connector | Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | Connection Thread T | ØP | A | B | L | H1 | H2 | O1 | O2 | C |
| PC 04-G01 | 4mm | G1/8 | 9.8 | 5.5 | 19 | 14.5 | 14 | 3 | 11.8 | 10.3 | 10.3 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
How to use PC 04-G01 | 4mm Tube - BSP, BSPP, G 1/8 Thread Male Connector | Push to Connect Fitting
