PC 05-M5 | 5mm Tube - M5 × 0.8 Thread Male Connector | Push to Connect Fitting

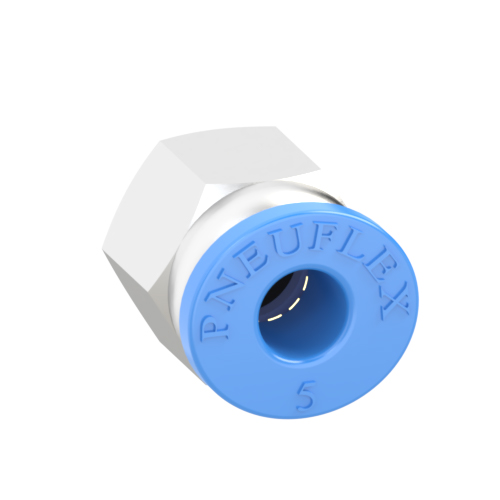

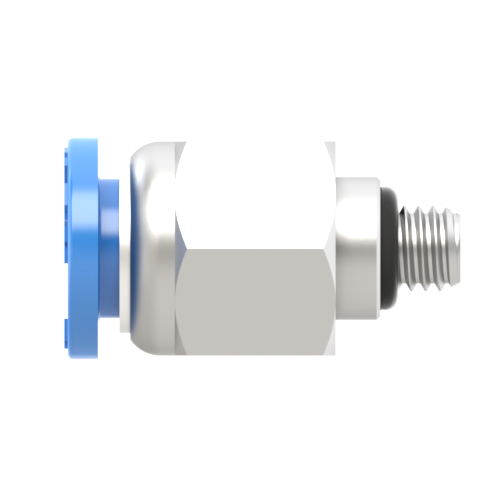

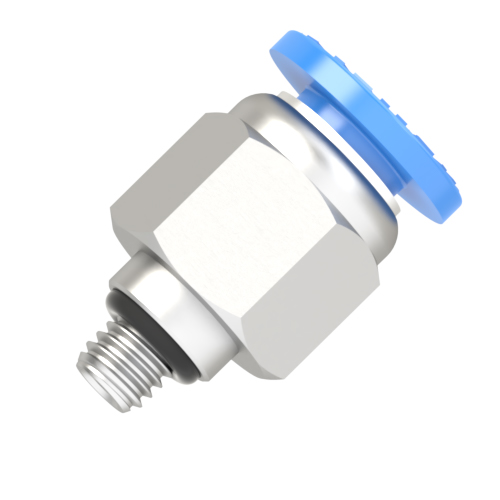

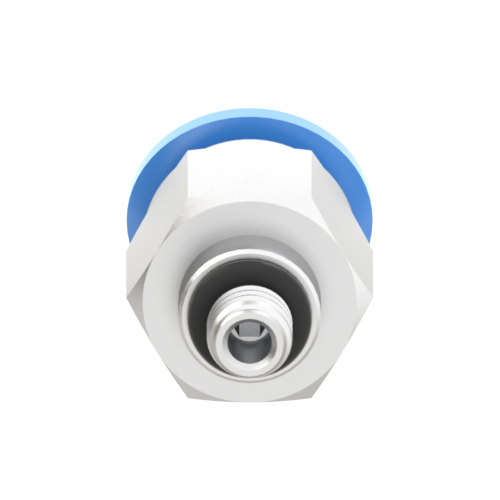

PC 05-M5 male connector push to connect fitting is designed to connect 5mm O.D tubing to M5 x 0.8 female stud thread in straight line. 5mm O.D tubing to M5 male connector push to connect fitting features a external hexagon nickel-plated brass body. Internal hexagon on straight adapter allows assembly in confined spaces. M5 x 0.8 thread has O-ring for sealing. Oval or round release ring helps to connect or disconnect tubing easily by manual, no special tools required.
Product Specifications
| Applicable Tubing O.D.: | 5mm |
| Connection Thread: | M5 x 0.8 |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 05-M5 | 5mm Tube - M5 × 0.8 Thread Male Connector | Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | Connection Thread T |
| PC 05-M5 | 5mm | M5 x 0.8 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
How to use PC 05-M5 | 5mm Tube - M5 × 0.8 Thread Male Connector | Push to Connect Fitting
Category: Composite Push to Connect Fittings / PC Male Connector
