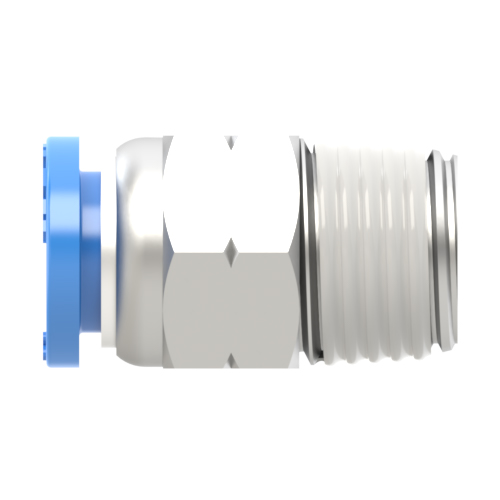

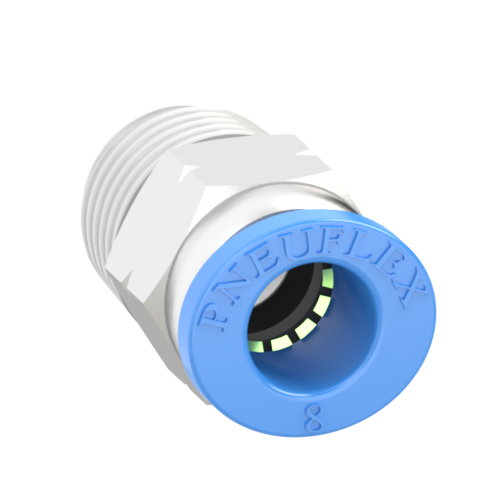

PC 08-N02 | 8mm Tube - 1/4 NPT Thread Male Connector | Push to Connect Fitting

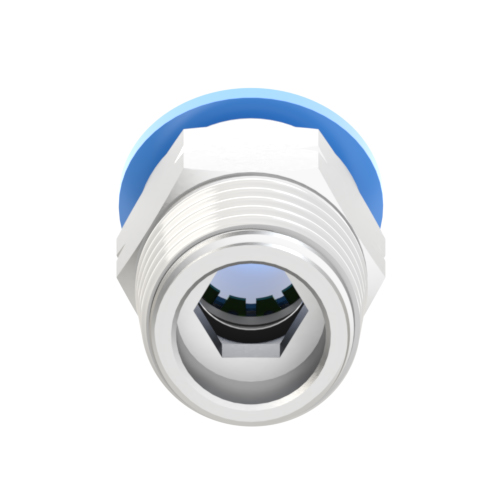

PC 08-N02 male connector push to connect fitting is designed to connect 8mm O.D tubing to 1/4 NPT female threaded pneumatic system in a straight line. 8mm O.D tubing to 1/4 NPT male connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. Internal hexagon on straight adapter allows assembly in confined spaces. 8mm tubing to 1/4 NPT male connector pneumatic fittings connect tubing and components of hydraulic and pneumatic systems without the needs for tools or soldering, promoting ease of installation and troubleshooting.
| Applicable Tubing O.D.: | 8mm |
| Connection Thread: | 1/4 NPT |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 08-N02 | 8mm Tube - 1/4 NPT Thread Male Connector | Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | Connection Thread T | ØP | A | B | L | H1 | H2 | O1 | O2 | C |
| PC 08-N02 | 8mm | 1/4 NPT | 13..8 | 10 | 25 | 17.5 | 9/16 | 1/4 | 16 | 13.8 | 13.8 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
