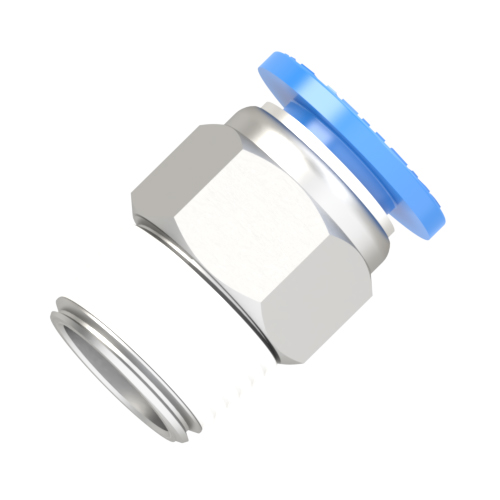

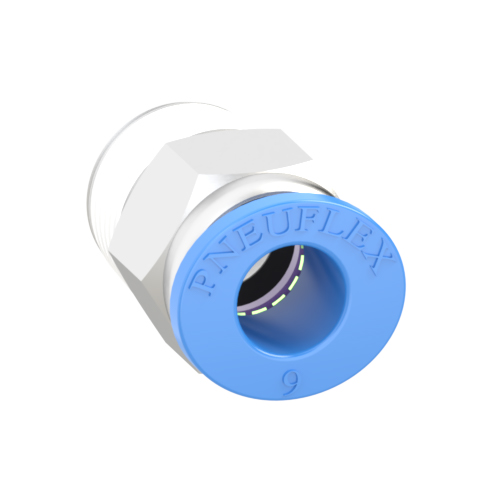

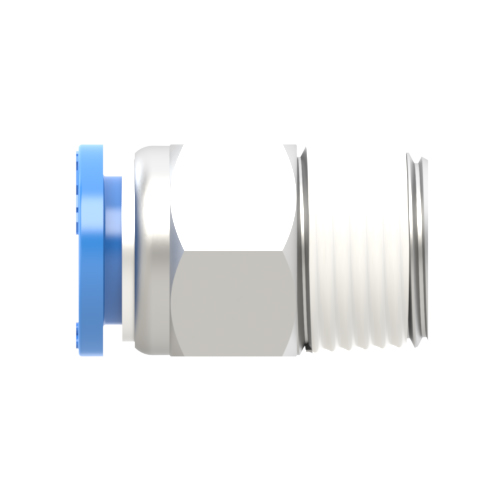

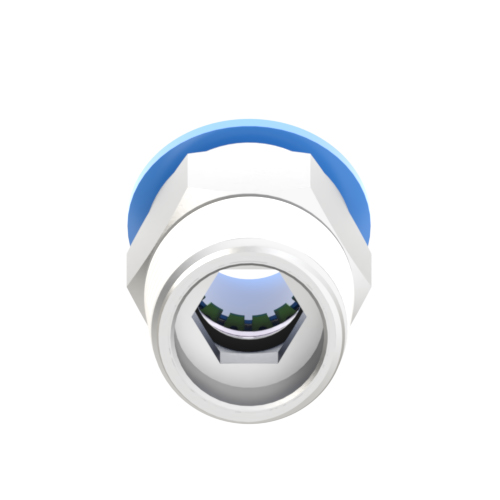

PC 09-03 male connector push to connect fitting is designed to connect 9mm O.D tubing to R, PT, BSPT 3/8 female threaded pneumatic system in a straight line. 9mm O.D tubing to R, PT, BSPT 3/8 male connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. Internal hexagon on straight adapter allows assembly in confined spaces. 9mm tubing to R, PT, BSPT 3/8 male connector pneumatic fitting is widely used in industries automatic production equipment like machinery, electronics, automobile, packaging and medical.

9mm - R 3/8 male connector push to connect fitting 9mm Tube, R 3/8 Male Connector 9mm Tube, R 3/8 Push to Connect Fitting 9mm Tube, R 3/8 Push to Connect Fitting Male Connector
Product Specifications
Applicable Tubing O.D.: 9mm
Connection Thread: R3/8
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC...

Dimensions of PC 09-03 | 9mm Tube - R, PT, BSPT 3/8 Thread Male Connector | Push to Connect Fitting

images/pneuflex-products/push-to-connect-fittings/pc-male-connector/male-connector-push-to-connect-fittings-structure.jpg#joomlaImage://local-images/pneuflex-products/push-to-connect-fittings/pc-male-connector/male-connector-push-to-connect-fittings-structure.jpg?width=500&height=400

dimensions of male connector push to connect fitting

Part No. Applicable Tubing ΦD Connection Thread T
PC 09-03 9mm R3/8

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.

How to use PC 09-03 | 9mm Tube - R, PT, BSPT 3/8 Thread Male Connector | Push to Connect Fitting

how to use male connector push to connect fitting

RoHS Compliance of Push to Connect Fitting
