PC 1/4-03 | 1/4 O.D Tube - R, PT, BSPT 3/8 Thread Male Connector | Push to Connect Fitting

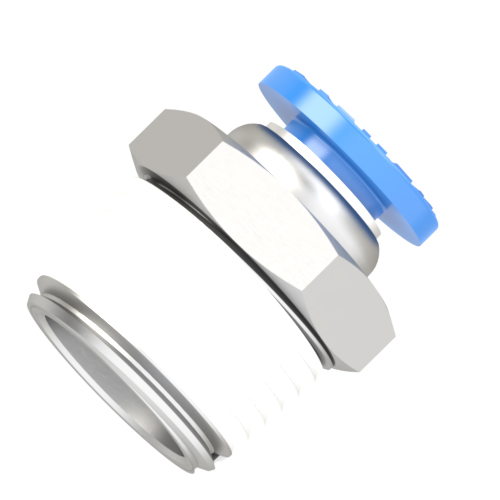

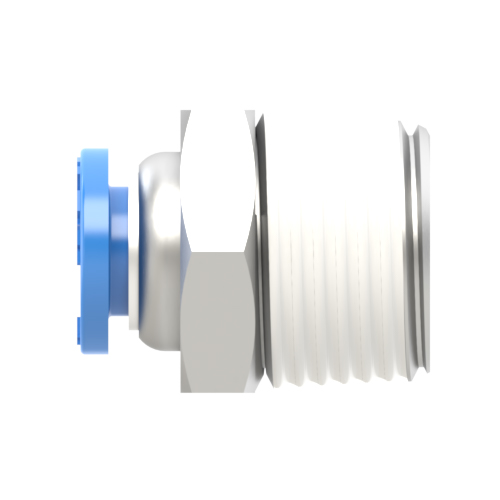

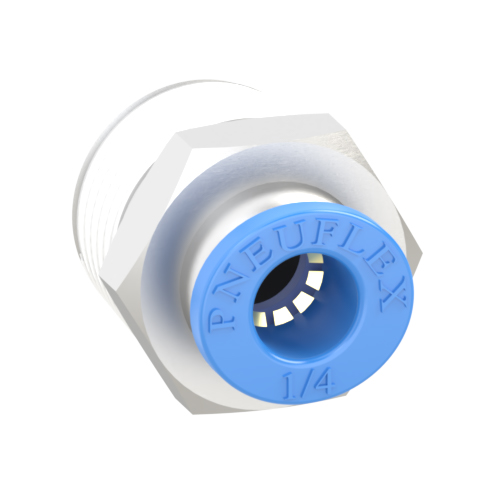

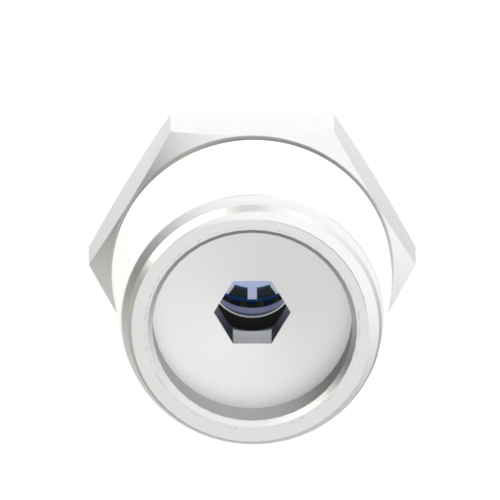

PC 1/4-03 male connector push to connect fitting is designed to connect 1/4" O.D tubing to R, PT, BSPT 3/8 female threaded pneumatic system in a straight line. 1/4" O.D tubing to R, PT, BSPT 3/8 male connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. Internal hexagon on straight adapter allows assembly in confined spaces. 1/4" tubing to R, PT, BSPT 3/8 male connector pneumatic fittings are mainly used for quick connector piping, which can achieve line connected or disconnected without other tools easily.
| Applicable Tubing O.D.: | 1/4" |
| Connection Thread: | R3/8 |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 1/4-03 | 1/4 O.D Tube - R, PT, BSPT 3/8 Thread Male Connector | Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | Connection Thread T | ØP | A | B | L | H1 | H2 | O1 | O2 | C |
| PC 1/4-03 | 1/4" | R3/8 | 11.8 | 10.5 | 21 | 15.5 | 17 | 4 | 13.8 | 12.4 | 12.4 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
