PC 10-G01 | 10mm Tube - BSP, BSPP, G 1/8 Thread Male Connector | Push to Connect Fitting

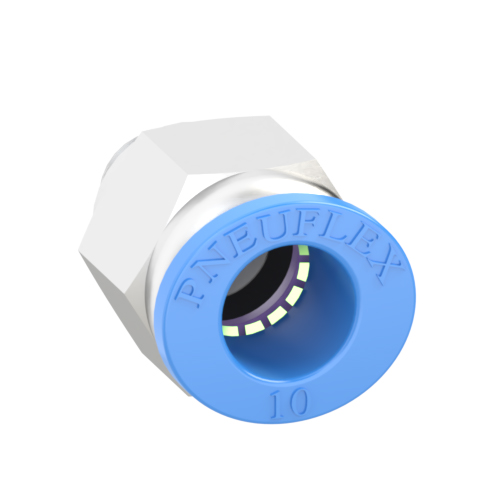

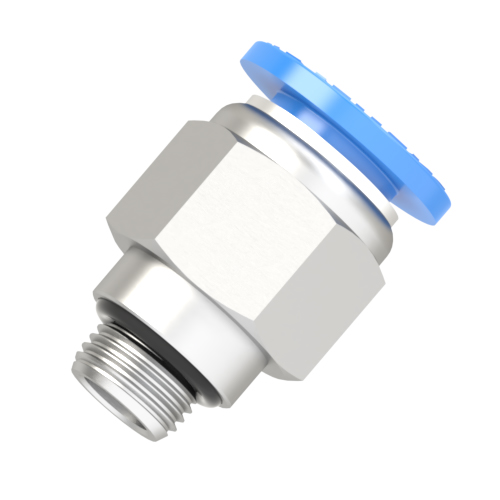

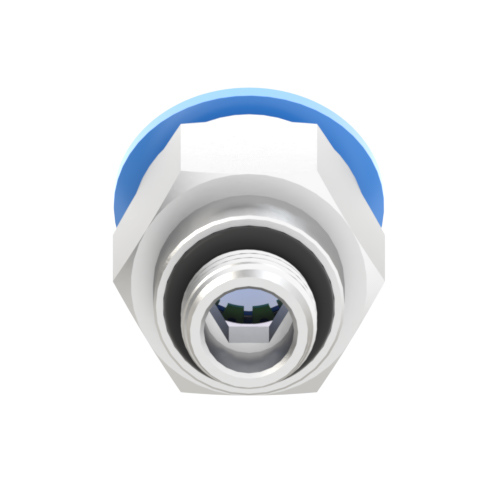

PC 10-G01 male connector push to connect fitting is designed to connect 10mm O.D tubing to BSP, BSPP, G 1/8 female threaded pneumatic system in a straight line. 10mm O.D tubing to BSP, BSPP, G 1/8 male connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. Internal hexagon on straight adapter allows assembly in confined spaces. 10mm tubing to BSP, BSPP, G 1/8 male connector pneumatic fittings easy to install, flexible and space-saving, release rings adopt ellipse design, which can be removed conveniently.
| Applicable Tubing O.D.: | 10mm |
| Connection Thread: | G1/8 |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 10-G01 | 10mm Tube - BSP, BSPP, G 1/8 Thread Male Connector | Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | Connection Thread T | ØP | A | B | L | H1 | H2 | O1 | O2 | C |
| PC 10-G01 | 10mm | G1/8 | 16.9 | 5.5 | 29 | 20.6 | 17 | 5 | 19.5 | 17 | 17 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
