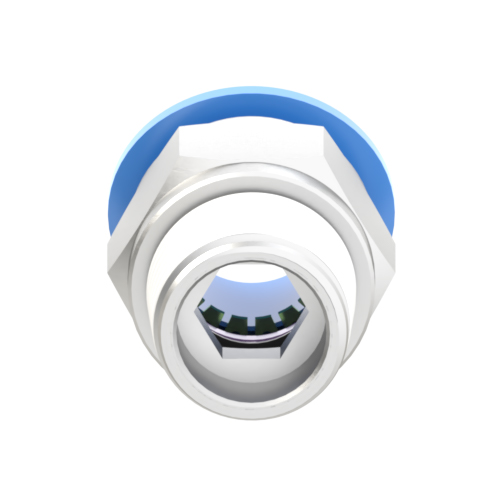

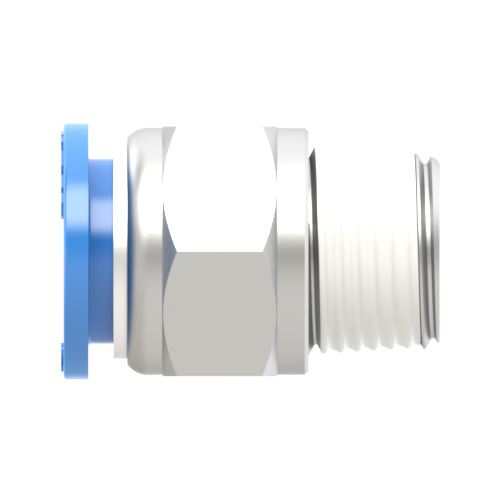

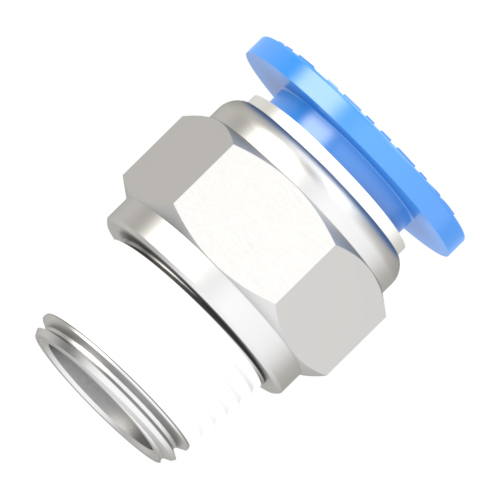

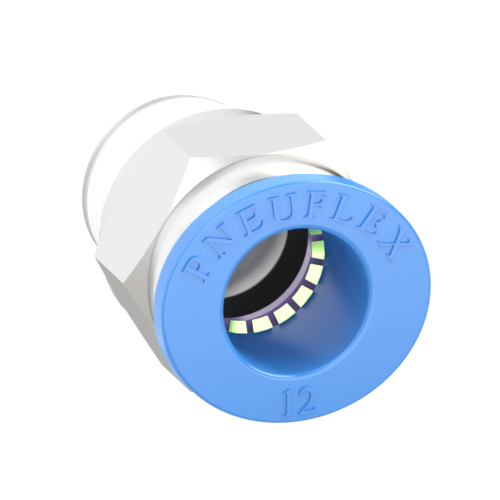

PC 12-03 male connector push to connect fitting is designed to connect 12mm O.D tubing to R, PT, BSPT 3/8 female threaded pneumatic system in a straight line. 12mm O.D tubing to R, PT, BSPT 3/8 male connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. Internal hexagon on straight adapter allows assembly in confined spaces. 12mm tubing to R, PT, BSPT 3/8 male connector pneumatic fittings guarantee leak-free and secure connections for all of your pneumatic applications.

12mm - R 3/8 male connector push to connect fitting 12mm Tube, R 3/8 Male Connector 12mm Tube, R 3/8 Push to Connect Fitting 12mm Tube, R 3/8 Push to Connect Fitting Male Connector
Product Specifications
Applicable Tubing O.D.: 12mm
Connection Thread: R3/8
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC...

Dimensions of PC 12-03 | 12mm Tube - R, PT, BSPT 3/8 Thread Male Connector | Push to Connect Fitting

images/pneuflex-products/push-to-connect-fittings/pc-male-connector/male-connector-push-to-connect-fittings-structure.jpg#joomlaImage://local-images/pneuflex-products/push-to-connect-fittings/pc-male-connector/male-connector-push-to-connect-fittings-structure.jpg?width=500&height=400

dimensions of male connector push to connect fitting

Part No. Applicable Tubing ΦD Connection Thread T ØP A B L H1 H2 O1 O2 C
PC 12-03 12mm R3/8 19.8 10.5 30.1 22.1 20 8 22.8 20.4 20.4

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.

How to use PC 12-03 | 12mm Tube - R, PT, BSPT 3/8 Thread Male Connector | Push to Connect Fitting

how to use male connector push to connect fitting
