PC 3/16-U10 | 3/16 O.D Tube - 10-32 UNF Thread Male Connector | Push to Connect Fitting

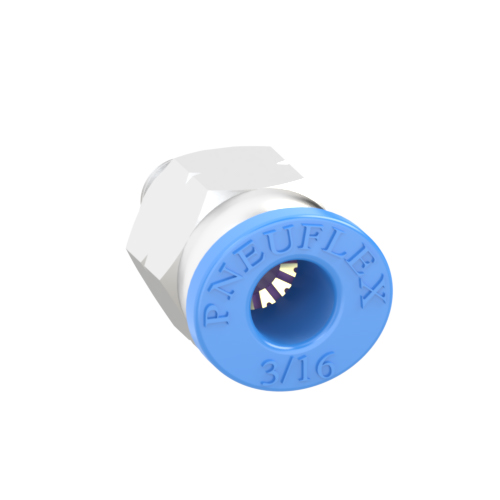

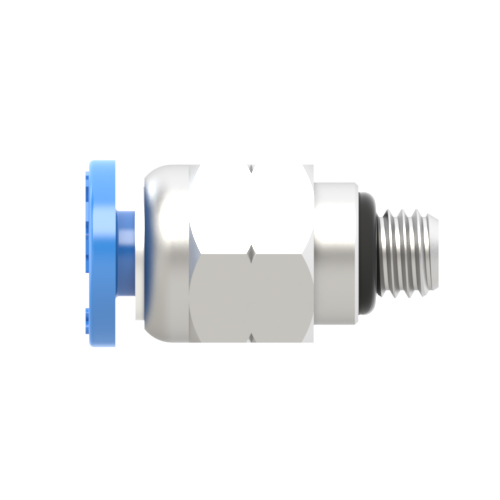

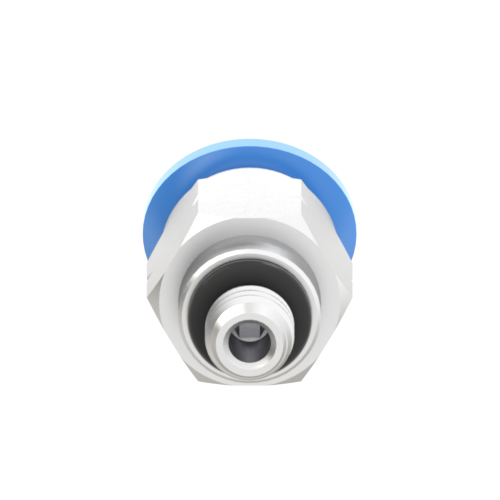

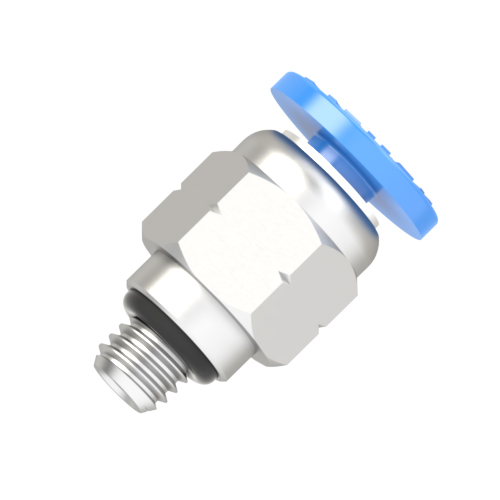

PC 3/16-U10 male connector push to connect fitting is designed to connect 3/16" O.D tubing to 10-32 UNF female stud thread in straight line. 3/16" O.D tubing to 10-32 UNF male connector push to connect fitting features a external hexagon nickel-plated brass body. Internal hexagon on straight adapter allows assembly in confined spaces. 10-32 UNF thread has O-ring for sealing. Oval or round release ring helps to connect or disconnect tubing easily by manual, no special tools required.
Product Specifications
| Applicable Tubing O.D.: | 3/16" |
| Connection Thread: | 10-32 UNF |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 3/16-U10 | 3/16 O.D Tube - 10-32 UNF Thread Male Connector | Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | Connection Thread T | ØP | A | B | L | H1 | O1 | O2 | C |
| PC 3/16-U10 | 3/16" | 10-32 UNF | 10.9 | 4.5 | 22 | 14.5 | 7/16 | 11.8 | 10.3 | 10.3 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
How to use PC 3/16-U10 | 3/16 O.D Tube - 10-32 UNF Thread Male Connector | Push to Connect Fitting
Category: Composite Push to Connect Fittings / PC Male Connector
