PC 5/32-G03 | 5/32 O.D Tube - BSP, BSPP, G 3/8 Thread Male Connector | Push to Connect Fitting

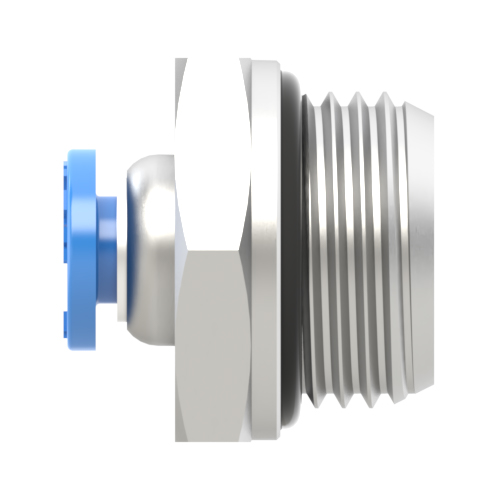

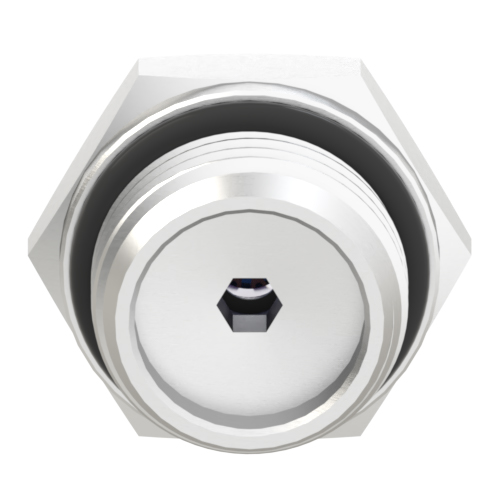

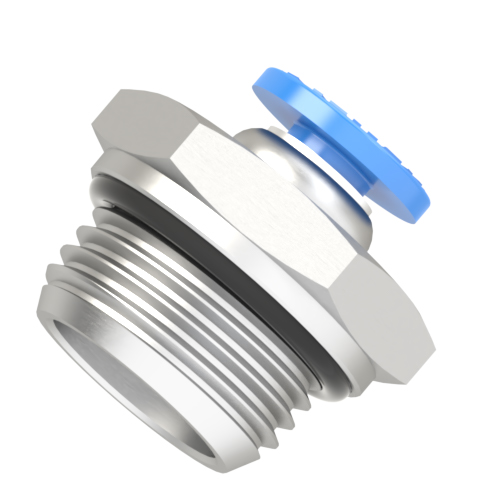

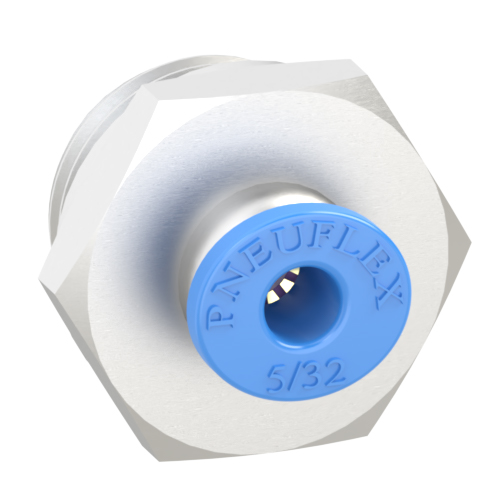

PC 5/32-G03 male connector push to connect fitting is designed to connect 5/32" O.D tubing to BSP, BSPP, G 3/8 female threaded pneumatic system in a straight line. 5/32" O.D tubing to BSP, BSPP, G 3/8 male connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. Internal hexagon on straight adapter allows assembly in confined spaces. 5/32" tubing to BSP, BSPP, G 3/8 male connector pneumatic fitting is the most intuitive way of connecting tubes to a fitting in order to create a fluid distribution network.
| Applicable Tubing O.D.: | 5/32" |
| Connection Thread: | G3/8 |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | Nickel Plated Brass |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC... |
- Technical Data
- Downloads
Dimensions of PC 5/32-G03 | 5/32 O.D Tube - BSP, BSPP, G 3/8 Thread Male Connector | Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | Connection Thread T |
| PC 5/32-G03 | 5/32" | G3/8 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
How to use PC 5/32-G03 | 5/32 O.D Tube - BSP, BSPP, G 3/8 Thread Male Connector | Push to Connect Fitting
