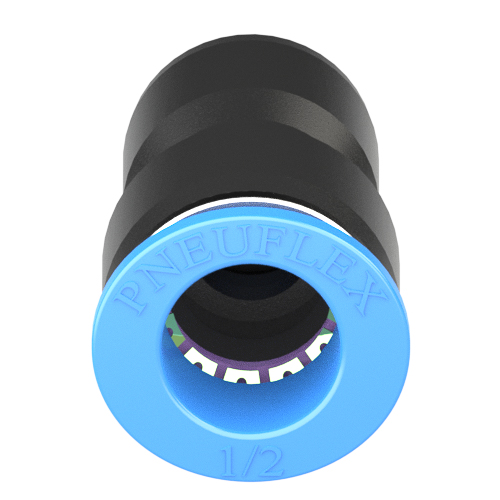

1/2" - 5/16" union straight reducer push to connect fitting is connecting two tubings that are different tubing O.D size. One tubing connection is 1/2" O.D and another tubing connection is 5/16" O.D. The stainless steel lock claw design ensures superior clamping with various types of tubing such as polyethylene tubing, polyurethane tubing, nylon tubing and teflon tubing.

1/2 - 5/16 union straight reducer push to connect fitting 1/2 - 5/16 push to connect fitting 1/2 - 5/16 union straight reducer 1/2 - 5/16 inch tube push to connect fitting
Product Specifications
Applicable Tubing O.D.1: 1/2"
Applicable Tubing O.D.2: 5/16"
Fluid Admitted: Air, Vacuum, Water (no freezing)
Body Material: PBT Plastic
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC Teflon Tubing ...
Request for Quotation
Catalog:
RoHS Compliant

Dimensions of PG 1/2-5/16 | 1/2 - 5/16 Union Straight Reducer | Push to Connect Fitting

pg union straight reducer construction

drawing of pg union straight reducer push to connect fitting

Part No. Applicable Tubing O.D.1 Applicable Tubing O.D.2 ØP1 ØP2 B L1 L2 O1 O2 C
PG 1/2-5/16 1/2" 5/16" 21 19 47 22.8 19 23 / 16 20.5 / 13.8 19.8 / 13.8

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
