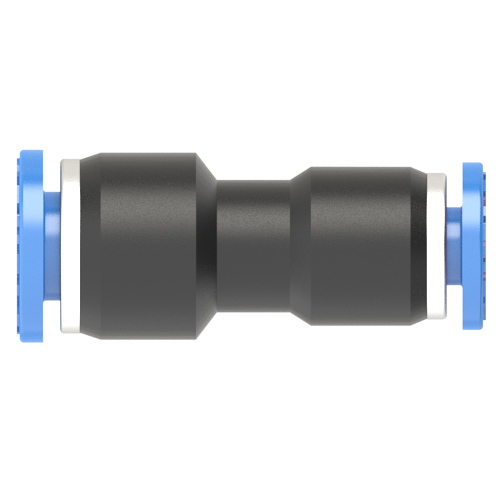

1/4" to 1/8" union straight reducer push to connect fitting is used for connecting two different size plastic tubes in the same direction. One tube connection is 1/4" tube and another tube connection is 1/8" tube. 1/4" to 1/8" push to connect fitting is easy to install and release and internal design of stainless steel lock claw offers a secure connections that hold the plastic tube firmly.

1/4 to 1/8 union straight reducer push to connect fitting 1/4 to 1/8 union straight reducer 1/4 to 1/8 tube push to connect fitting 1/4 to 1/8 tube push to connect fitting
Product Specifications
Applicable Tubing O.D.1: 1/4"
Applicable Tubing O.D.2: 1/8"
Fluid Admitted: Air, Vacuum, Water (no freezing)
Body Material: PBT Plastic
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC Teflon Tubing ...
Request for Quotation
Catalog:
RoHS Compliant

Dimensions of PG 1/4-1/8 | 1/4 - 1/8 Union Straight Reducer | Push to Connect Fitting

pg union straight reducer construction

drawing of pg union straight reducer push to connect fitting

Part No. Applicable Tubing O.D.1 Applicable Tubing O.D.2 ØP1 ØP2 B L1 L2 O1 O2 C
PG 1/4-1/8 1/4" 1/8" 13.4 11 33 15.9 13.8 13.8 / 12 12.4 / 10.4 11.8 / 9.8

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
