push to connect fittings 5 way

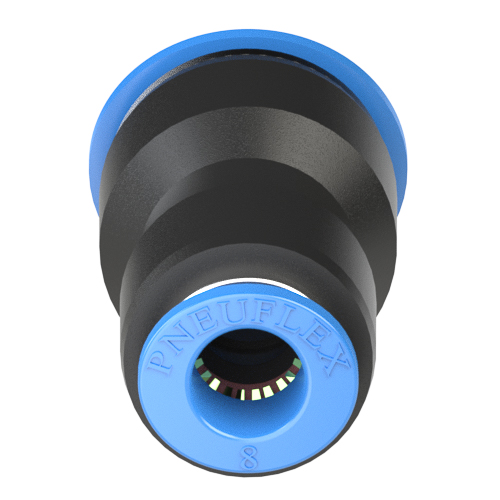

12mm - 8mm union straight reducer push to connect fitting is used for connecting two tubes of different size inline, one port tube size is 12mm and another port tube size is 8mm. 12mm tube to 8mm tube push to connect fitting is easy to install and release in tubing systems.  The stainless steel lock claw design ensures superior clamping with various types of tubing such as polyethylene tubing, polyurethane tubing, nylon tubing and teflon tubing.

12mm - 8mm union straight reducer push to connect fitting 12mm - 8mm push to connect fitting 12mm - 8mm union straight reducer 12mm - 8mm tube push to connect fitting
Product Specifications
Applicable Tubing O.D.1: 12mm
Applicable Tubing O.D.2: 8mm
Fluid Admitted: Air, Vacuum, Water (no freezing)
Body Material: PBT Plastic
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC Teflon Tubing ...
Request for Quotation
Catalog:
RoHS Compliant

Dimensions of PG 12-08 | 12mm - 8mm Union Straight Reducer | Push to Connect Fitting

pg union straight reducer construction

drawing of pg union straight reducer push to connect fitting

Part No. Applicable Tubing O.D.1 Applicable Tubing O.D.2 ØP1 ØP2 B L1 L2 O1 O2 C
PG 12-08 12mm 8mm 21 19 47 22.8 19 23 / 16 20.5 / 13.8 19.8 / 13.8

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.

How to connect and disconnect PG 12-08 | 12mm - 8mm Union Straight Reducer | Push to Connect Fitting

how to use union straight reducer push to connect fitting
