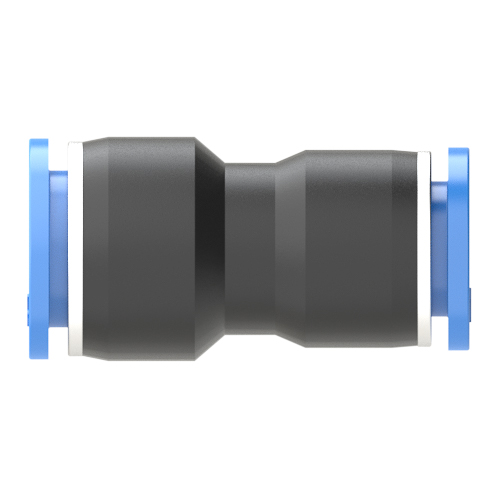

16mm - 14mm union straight reducer push to connect fitting is widely used for connecting a 16mm O.D tubing and a 14mm O.D tubing inline in compressed air circuits. 16mm to 14mm push to connect fitting equipped with a convenient one touch release button. Quick and simple tube connection and disconnection in tubing systems.

16mm - 14mm union straight reducer push to connect fitting 16mm - 14mm tube push to connect fitting 16mm - 14mm push to connect fitting 16mm - 14mm union straight reducer
Product Specifications
Applicable Tubing O.D.1: 16mm
Applicable Tubing O.D.2: 14mm
Fluid Admitted: Air, Vacuum, Water (no freezing)
Body Material: PBT Plastic
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC Teflon Tubing ...
Request for Quotation
Catalog:
RoHS Compliant

Dimensions of PG 16-14 | 16mm - 14mm Union Straight Reducer | Push to Connect Fitting

pg union straight reducer construction

drawing of pg union straight reducer push to connect fitting

Part No. Applicable Tubing O.D.1 Applicable Tubing O.D.2 ØP1 ØP2 B L1 L2 O1 O2 C
PG 16-14 16mm 14mm 26 23 51 24.7 24 26.5 / 25 24.5 / 22 23.8 / 21.8

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.

How to connect and disconnect PG 16-14 | 16mm - 14mm Union Straight Reducer | Push to Connect Fitting

how to use union straight reducer push to connect fitting
