push to connect fittings 5 way

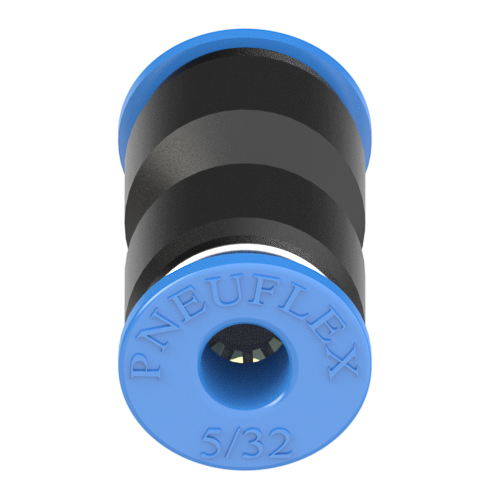

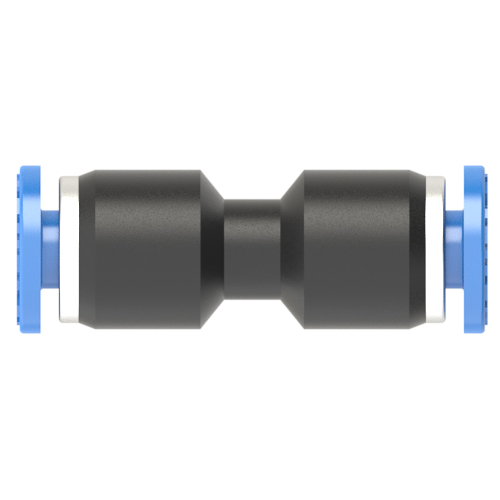

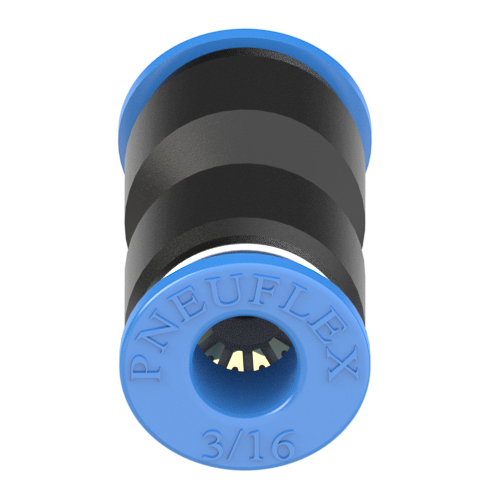

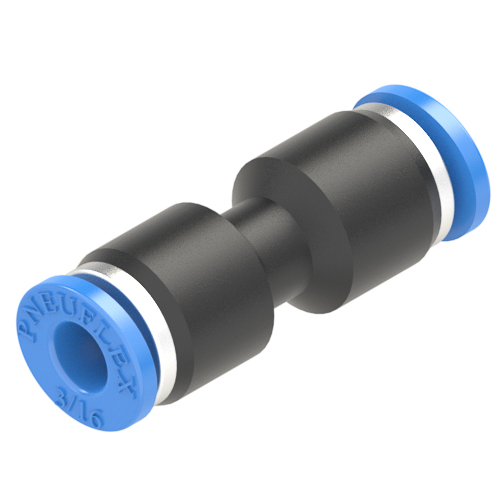

3/16" to 5/32" union straight reducer push to connect fitting is used for connecting a 3/16" tubing and a 5/32" tubing straightly in tubing systems.  3/16" to 5/32" push to connect fitting equipped with a convenient one touch release button that provides a sample and quick tubing connection and disconnection. The body is made of PBT plastic.

3/16 to 5/32 union straight reducer push to connect fitting 3/16 to 5/32 push to connect fitting 3/16 to 5/32 tube push to connect fitting 3/16 to 5/32 union straight reducer
Product Specifications
Applicable Tubing O.D.1: 3/16"
Applicable Tubing O.D.2: 5/32"
Fluid Admitted: Air, Vacuum, Water (no freezing)
Body Material: PBT Plastic
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC Teflon Tubing ...
Request for Quotation
Catalog:
RoHS Compliant

Dimensions of PG 3/16-5/32 | 3/16-5/32 Union Straight Reducer | Push to Connect Fitting

pg union straight reducer construction

drawing of pg union straight reducer push to connect fitting

Part No. Applicable Tubing O.D.1 Applicable Tubing O.D.2 ØP1 ØP2 B L1 L2 O1 O2 C
PG 3/16-5/32 3/16" 5/32" 11 11 33 14.3 13.8 12 / 12 10.4 / 10.4 9.8 / 9.8

* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
